T3.5 10/12 24V C2,5M WHITE/1
Reference : 2006978
Torque 10 Nm - Speed 12 r.p.m. - 24V DC
Power cable: 2.5 meters (2x0,75 mm2 wires, white H05 VV-F)
Delivered by 1

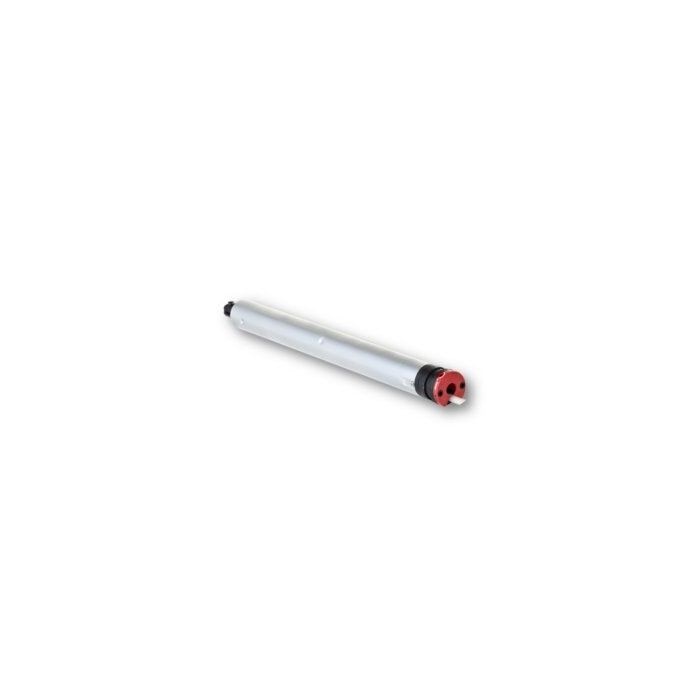

Direct current wired motor, Ø40 mm
- Selv low voltage power supplied by battery or network + transformer for wet areas or if there is no of power supply
- Progressive end-limit system
- Setting of the up and down end-limits on the motor head
- Easy wiring: no earth connection required.
Related documents
- -- Fiche produit T3.5 CC (FR)_2022
- -- Product leaflet T3.5 DC (EN)_2022
- Installation guide_T3.5DC-T5 12Vcc-T5 24Vcc_5007557G_2022
Features
| Features | Value |
| Protection Index | IP 44 |
| Speed | 12 rpm |
| Torque | 10 Nm |
| Diameter | 40 mm |
| Power supply | 24V |
| Applications | Exterior Vertical Screen, Rolling shutter, Awning |
