Produit
See the range

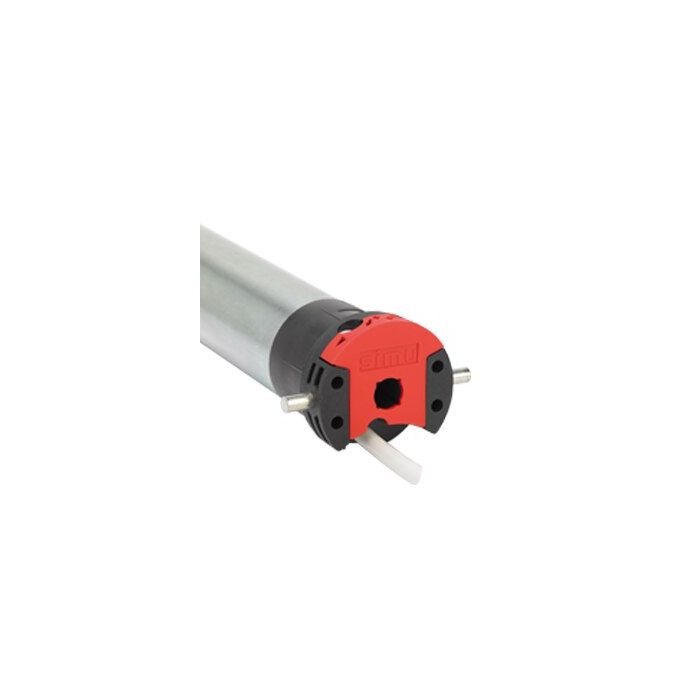

T5 15/17 230/50 C2,5M WITHOUT SCR.TOOL/10
Reference : 2005944
Torque 15 Nm - Speed 17 rpm
Power cable: 2.5 meters (4x0.75 mm2 wires, white H05 VVF)
Delivered by 10 - Without setting screwdriver
Wired, Ø50 mm
- Progressive end-limit system
- Setting of the up and down end-limits on the motor head thanks to a setting screwdriver
The reference model for standard
- Wide range of motors: a complete range of torque/speed to motorize most roller shutters & awnings or screens
- Upgrading: the T5 can be equipped with the SIMU-Hz radio technology by using the Hz receiver
Related documents
- -- Fiche produit T5 pour volets roulants (FR)
- -- Product leaflet T5 for roller shutter (EN)
- -- Product leaflet T5_12 rpm (EN)
- Installation Guide T3.5-T5-T6 AC- 5006258K_2022
Features
| Features | Value |
| Protection Index | IP 44 |
| Speed | 17 rpm |
| Torque | 15 Nm |
| Diameter | 50 mm |
| Power supply | 230V/50HZ |
| Applications | Exterior Vertical Screen, Rolling shutter, Garage door, Awning |
