The most powerful torque range

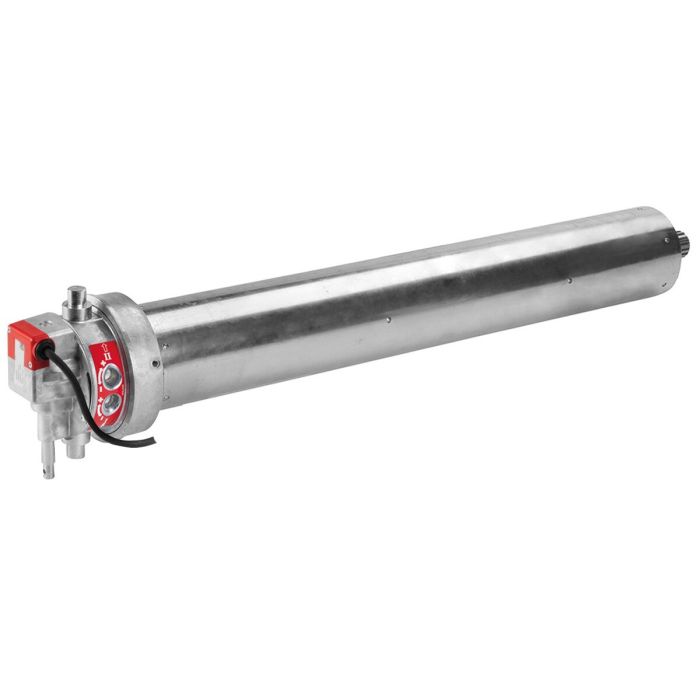

- From 300 to 800nm with three-phase power supply. The t9 (800 nm) is the best compromise on the market offering both a compact solution and high lifting capacity (up to 800kg).
- Safety end-limit system a third switch cuts the power supply to the motor when going beyond the up or down limits, in accordance with en 12453.

The most discreet solution for grilles and metal curtains !

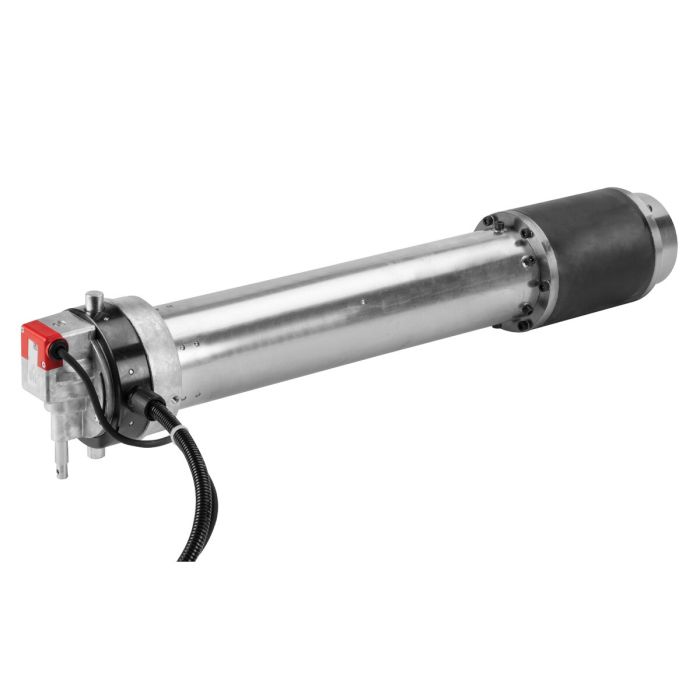

- Located inside the roller tube, the T9 motor considerably reduces the total diameter of the drive axis when the curtain is rolled up
- Range of torques up to 800 Nm, in three-phase current
- To facilitate your compliance with standard EN 12453, SIMU has built a safety travel limit device into the T9 motors. A third electrical contact cuts the power to the motor if the top or bottom travel limits are exceeded
- High utilisation frequency: 30 cycles per day, 20 minutes consecutive operation
