Technical characteristics
| Commercial Range | T8S- T8S DMI |
|---|---|
| Torque | 150 Nm |
| Unwrapped height | 130 mm |
| Unwrapped width | 130 mm |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 8 rpm |
| Approval | CE |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 80 mm |
| Unwrapped length | 710 mm |
| Range details | SLIM |
| Type | Motors |
| Application | Garage door, Industrial & commercial closure |
| Embedded Technologies | Wired |
| Consumption in standby mode | 0 W |
Compatibility & Applications
Embedded Technologies
-
Wired
Application
-
Garage door
-
Industrial & commercial closure
Description

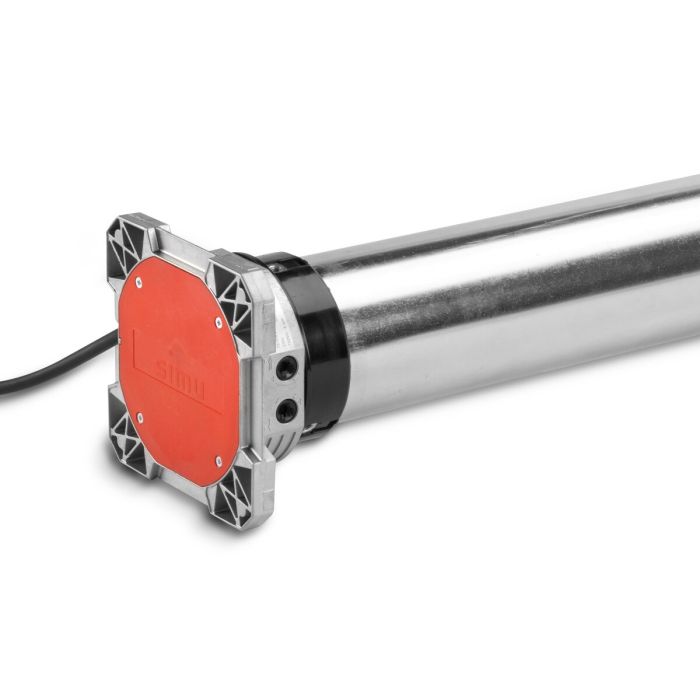

Narrow motor head, only 43 mm thick
-With or without integrated manual override optimized for installation between walls, with metal stud of 50 mm width and safety brake on the opposite side.
-Flexibility of installation the motor head with square shape, 4 mounting positions and its orientable bracket allows a positioning of the motor head without any constraint, adapting to all configurations.
-With or without integrated manual override optimized for installation between walls, with metal stud of 50 mm width and safety brake on the opposite side.
-Flexibility of installation the motor head with square shape, 4 mounting positions and its orientable bracket allows a positioning of the motor head without any constraint, adapting to all configurations.
