Technical characteristics
| Commercial Range | T8 - T8M |
|---|---|
| Torque | 150 Nm |
| Unwrapped height | 144 mm |
| Unwrapped width | 94 mm |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 8 rpm |
| Approval | CE |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 80 mm |
| Unwrapped length | 681 mm |
| Type | Motors |
| Application | Industrial & commercial closure |
| Embedded Technologies | Wired |
| Consumption in standby mode | 0 W |
Compatibility & Applications
Embedded Technologies
-
Wired
Application
-
Industrial & commercial closure

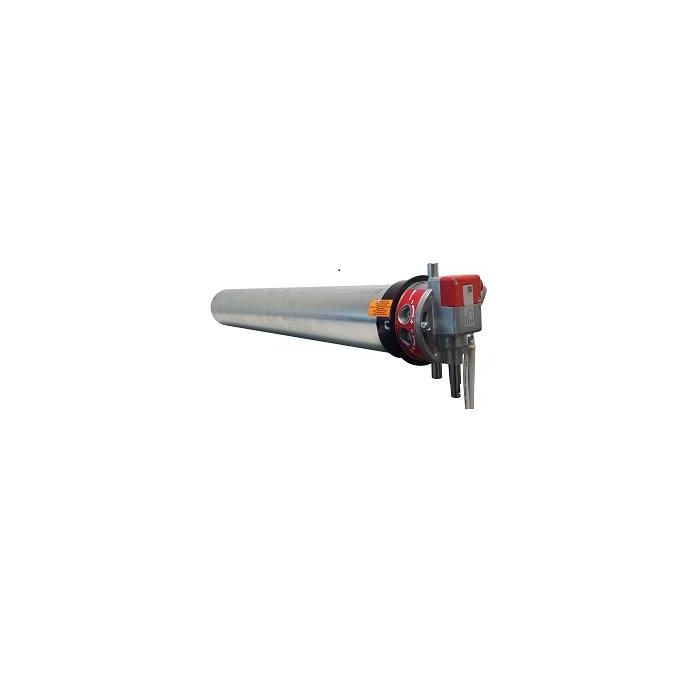

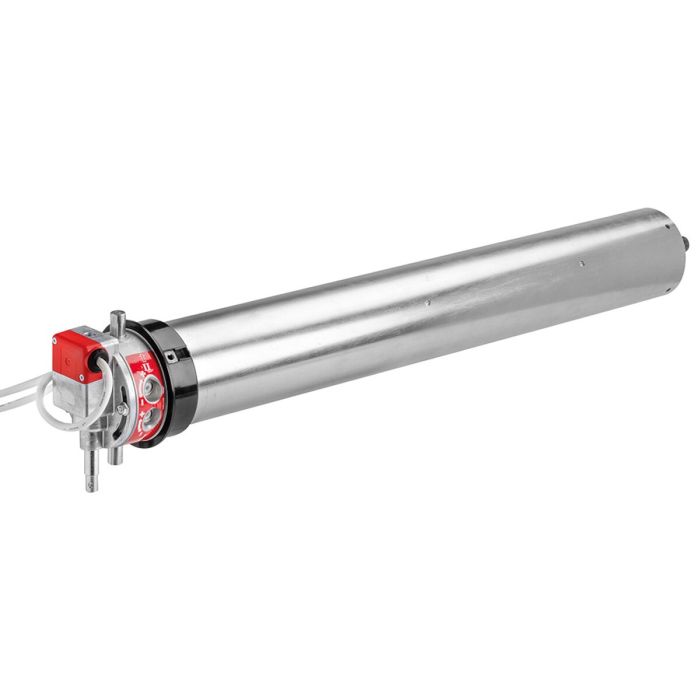

Description
Wired single-phase
-The widest range of torque, from 150 to 450Nm with single phase power supply
-Safety end-limit system a third switch cuts the power supply of the motor when going beyond the up or down limits, in accordance with or without.
The most discreet solution for grilles and metal curtains !
-Located inside the roller tube, the T8 considerably reduces the total diameter of the drive axis when the curtain is rolled up
-Range of torques up to 450 Nm, in single-phase current
-To facilitate your compliance with standard EN 12453, SIMU has incorporated a safety travel limit device in the T8 motors. A third electrical contact cuts the power to the motor if the top and bottom travel limits are exceeded
