Technical characteristics
Commercial Range | T8S- T8S DMI |
---|---|
Torque | 300 Nm |
Power supply | AC - RGE 1 - 230V/50HZ |
Speed | 8 rpm |
Approval | CE, CMIM, EAC |
Insulation class | Class I |
Protection Index | IP 44 |
Diameter | 80 mm |
Type | Motors |
Application | Industrial & commercial closure |
Embedded Technologies | Wired |
Compatibility & Applications
Description

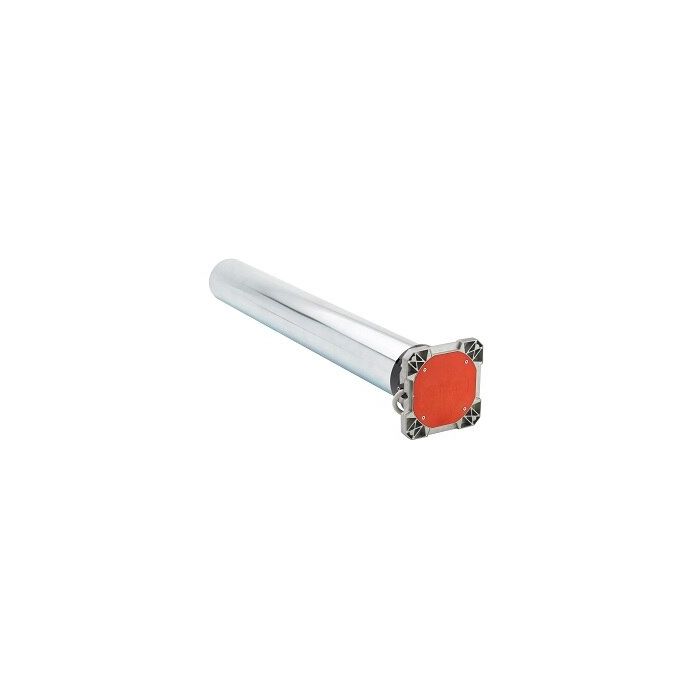

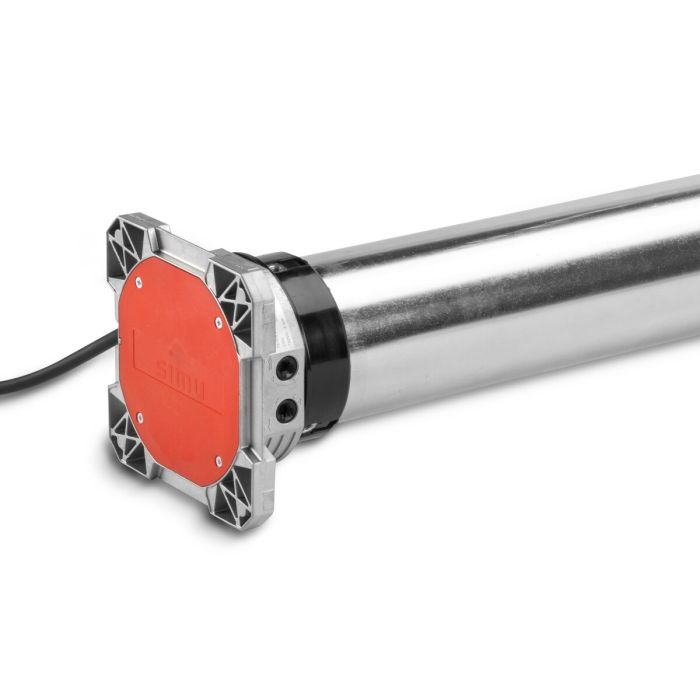

Narrow motor head, only 43 mm thick
- Optimized for installation between walls, with metal stud of 50 mm width and safety brake on the opposite side
-Flexibility of installation the motor head with square shape, 4 mounting positions and its orientable bracket allows a positioning of the motor head without any constraint, adapting to all configurations.
-Crosspiece manual override with direct drive.
-Safety end-limit system a third switch cuts the power supply of the motor when going beyond the up or down limits
-Easy integration thanks to the standardization of components.
-300Nm, in single-phase power supply.
