Technical characteristics
Commercial Range | T8 - T8M |
---|---|
Torque | 250 Nm |
Power supply | AC - RGE 1 - 230V/50HZ |
Speed | 8 rpm |
Approval | CE, CMIM, EAC |
Insulation class | Class I |
Protection Index | IP 44 |
Diameter | 80 mm |
Type | Motors |
Application | Industrial & commercial closure |
Compatibility & Applications
Description
Wired single-phase
-The widest range of torque, from 150 to 450Nm with single phase power supply
-Safety end-limit system a third switch cuts the power supply of the motor when going beyond the up or down limits, in accordance with or without.
Range information :
The most discreet solution for grilles and metal curtains !

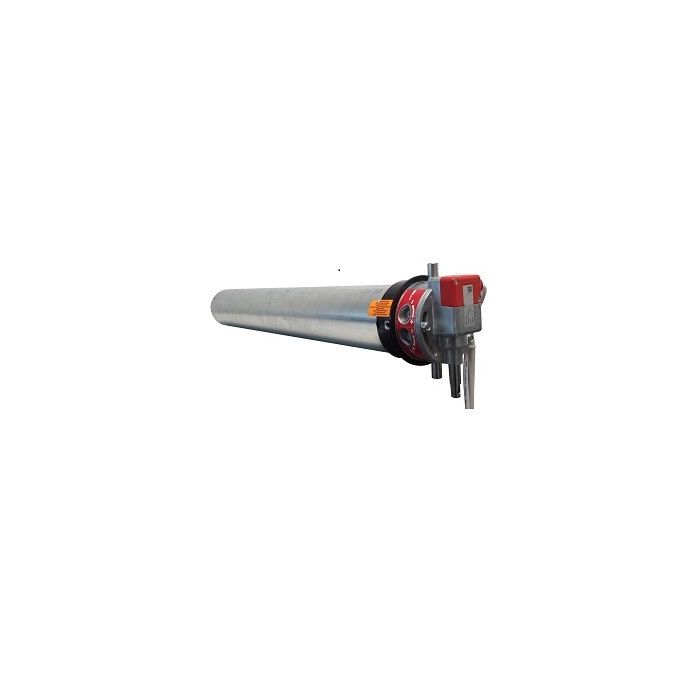

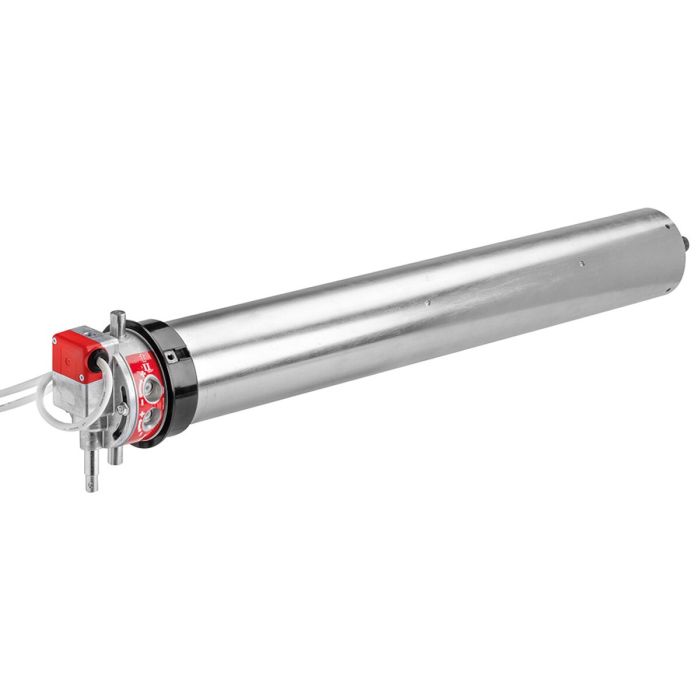

-Located inside the roller tube, the T8 considerably reduces the total diameter of the drive axis when the curtain is rolled up
-Range of torques up to 450 Nm, in single-phase current
-To facilitate your compliance with standard EN 12453, SIMU has incorporated a safety travel limit device in the T8 motors. A third electrical contact cuts the power to the motor if the top and bottom travel limits are exceeded
