Technical characteristics
| Commercial Range | T6 Hz.02 |
|---|---|
| Torque | 120 Nm |
| Unwrapped height | 55 mm |
| Unwrapped width | 78 mm |
| Radio Frequency | 433.420 MHz |
| Range in house | 15 m |
| Range in open field | 150 m |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 12 rpm |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 60 mm |
| Unwrapped length | 758 mm |
| Minimum internal diameter | 60 mm |
| Type | Motors |
| Application | Awning |
| Embedded Technologies | Hz |
| Consumption in standby mode | 0.38 W |
Compatibility & Applications
Embedded Technologies
-
Hz
Application
-
Awning
Description

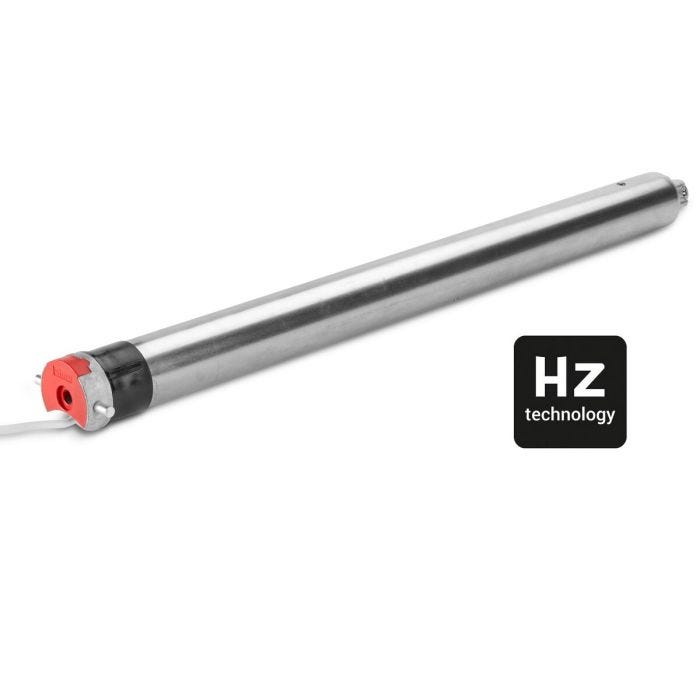

Radio electronic, 60 MM
- Motor with built-in SIMU Hz radio receiver
- Electronic end-limit system
- Remote setting of the up and down end-limits
- Intermediate position function
Power combined with remote control adjustment!
- Using the control transmitter, perating the T6 Hz.02 is quick and easy
- A wide range of torques from 60 to 120 Nm
- Practical power cable location in the roller boxes
- Motor equipped with the SIMU Hz wireless control system is recognized as one of the most reliable on the market
- The multi-directional cable outlet is very practical and makes it easy to integrate into the roller boxes
- Motor with built-in SIMU Hz radio receiver
- Electronic end-limit system
- Remote setting of the up and down end-limits
- Intermediate position function
Power combined with remote control adjustment!
- Using the control transmitter, perating the T6 Hz.02 is quick and easy
- A wide range of torques from 60 to 120 Nm
- Practical power cable location in the roller boxes
- Motor equipped with the SIMU Hz wireless control system is recognized as one of the most reliable on the market
- The multi-directional cable outlet is very practical and makes it easy to integrate into the roller boxes
