Technical characteristics
| Commercial Range | T6 |
|---|---|
| Torque | 55 Nm |
| Unwrapped height | 55 mm |
| Unwrapped width | 78 mm |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 17 rpm |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 60 mm |
| Unwrapped length | 718 mm |
| Minimum internal diameter | 60 mm |
| Type | Motors |
| Application | Awning, Exterior Vertical Screen, Garage door, Rolling shutter |
| Embedded Technologies | Wired |
| Consumption in standby mode | 0 W |
Compatibility & Applications
Embedded Technologies
-
Wired
Application
-
Awning
-
Exterior Vertical Screen
-
Garage door
-
Rolling shutter

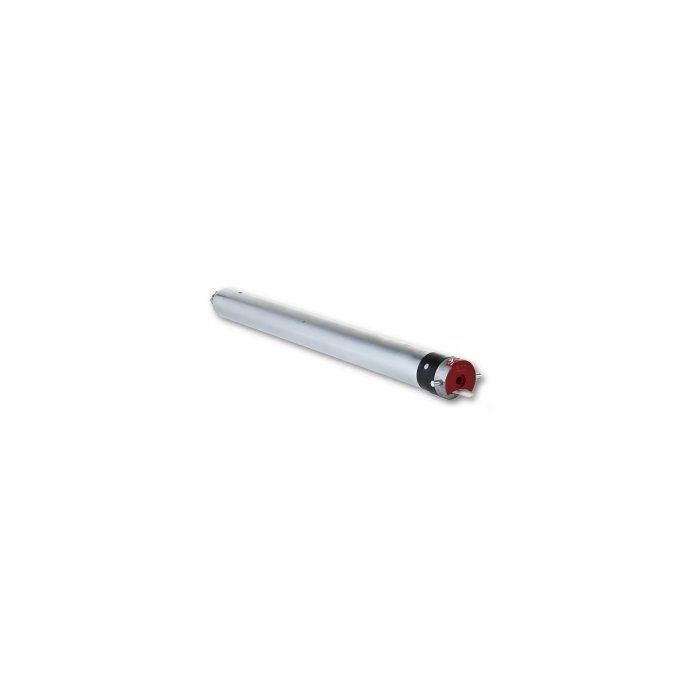

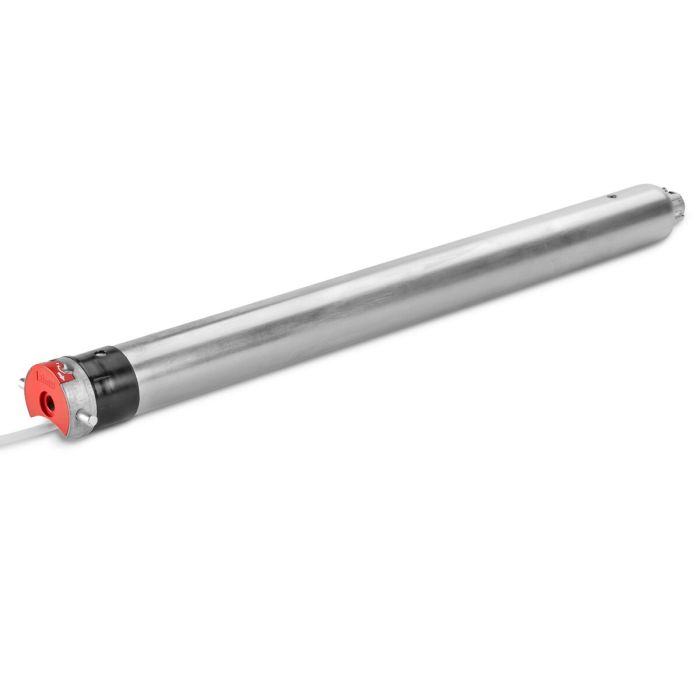

Description
Torque 55 Nm - Speed 17 rpm
Power cable: 2.5 meters (3x0.75 mm2 wires, white H05 VVF)
Delivered by 1
Wired, Ø60 mm
- Progressive end-limit system
- Setting of the up and down end-limits on the motor head
Power integrated into a standard motor
- With a range of torques from 40 to 120 Nm, the T6 can drive roller shutters of various sizes

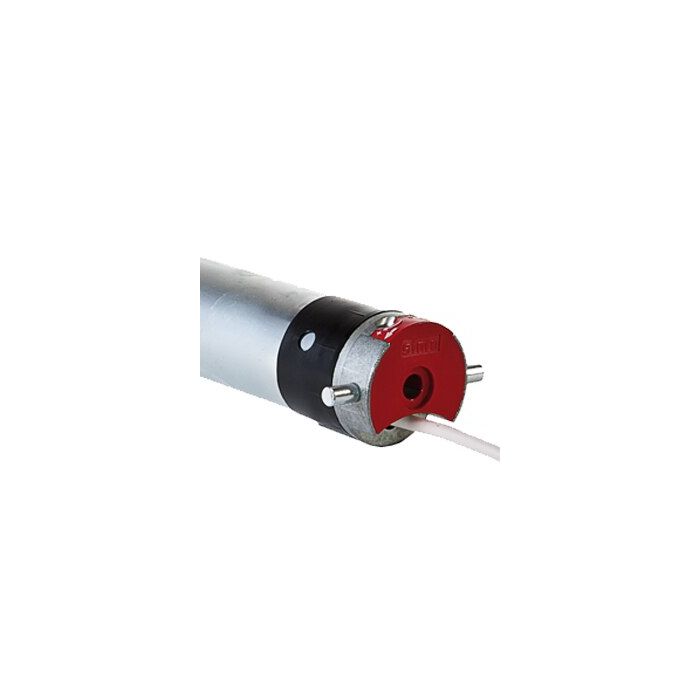

- The T6 motor head is fitted with a multidirectional cable outlet which simplifies positioning the power cable
- Using a Hz receiver, the T6 can be fitted with the SIMU-Hz wireless technology
