Technical characteristics
| Commercial Range | T5 AUTOSHORTBHZ |
|---|---|
| Torque | 6 Nm |
| Unwrapped height | 62 mm |
| Unwrapped width | 62 mm |
| Radio Frequency | 433.420 MHz |
| Range in house | 15 m |
| Range in open field | 150 m |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 17 rpm |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 50 mm |
| Unwrapped length | 383 mm |
| Minimum internal diameter | 47 mm |
| Application | Rolling shutter |
| Embedded Technologies | BHz |
| Consumption in standby mode | 0.39 W |
Compatibility & Applications
-
BHz
-
Rolling shutter
Description

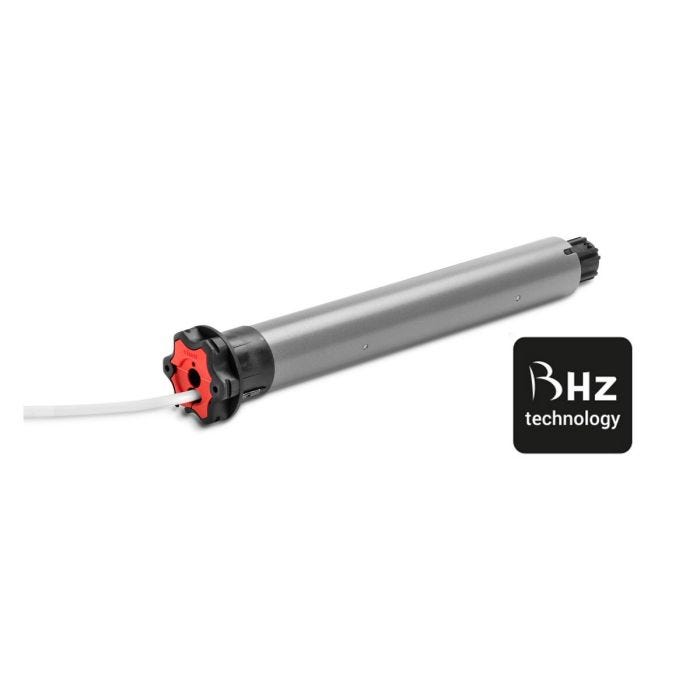

MOTOR SUITABLE FOR SHORT WIDTH ROLLER SHUTTER
…thanks to its length of only 383mm, including the adaptor set.
STOP ON OBSTACLE FUNCTION
…the motor stops during the closing in case of an obstacle.
FROST DETECTION FUNCTION
…the motor stops during the opening if the shutter curtain is stuck
in the guide rails by frost or if the bottom lath is locked.
INTERMEDIATE POSITION FUNCTION
…it is possibe to record a user’s favorite position.
AUTOMATIC SETTING OF THE UP AND DOWN END-LIMITS
…the roller shutter must be equipped with up and down stoppers.
SIMPLE PROGRAMMING
…SIMU-Hz/SIMU-BHz continuity: your installation and programming
habits remain the same as those of SIMU-Hz technology.
