Technical characteristics
| Commercial Range | T5 AUTOBHZ |
|---|---|
| Torque | 6 Nm |
| Unwrapped height | 63 mm |
| Unwrapped width | 63 mm |
| Radio Frequency | 868.250 MHz / 868.950 MHz / 869.850 MHz |
| Range in house | 20 m |
| Range in open field | 150 m |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 17 rpm |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 50 mm |
| Unwrapped length | 519 mm |
| Minimum internal diameter | 47 mm |
| Type | Motors |
| Application | Rolling shutter |
| Embedded Technologies | BHz |
| Consumption in standby mode | 0.43 W |
Compatibility & Applications
-
BHz
-
Rolling shutter
Description

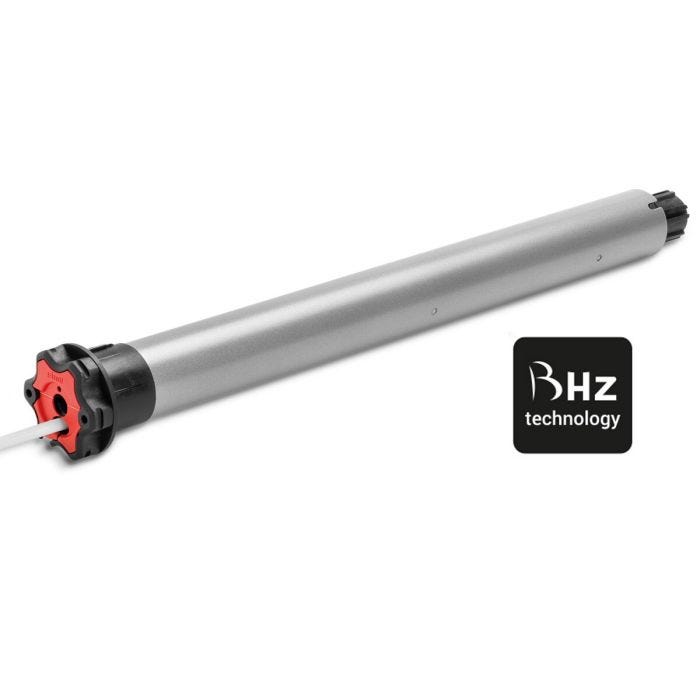

MOTOR WITH BUILT-IN BIDIRECTIONAL RADIO SIMU-BHZ
…a real time follow-up of your installation directly on smartphone with LiveIn. The motor gives its position on your smartphone.
ELECTRONIC END-LIMIT SYSTEM
…1 setting mode: full automatic mode.
STOP ON OBSTACLE FUNCTION
…the motor stops during the closing in the case of an obstacle.
FROST DETECTION FUNCTION
…the motor stops during the opening if the shutter curtain is stuck in the guide rails
by frost or if the bottom lath is locked.
INTERMEDIATE POSITION FUNCTION
…it is possible to record a user’s favorite position.
SIMPLE PROGRAMMING
…SIMU-Hz/SIMU-BHz continuity: your installation and programming habits remain the same as those of SIMU-Hz technology.
DESTRESSING FUNCTION AT THE UP AND DOWN END LIMIT
…in order to protect the roller shutter box and curtain.
