Technical characteristics
| Commercial Range | T5 |
|---|---|
| Torque | 40 Nm |
| Unwrapped height | 63 mm |
| Unwrapped width | 63 mm |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 17 rpm |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 50 mm |
| Unwrapped length | 671 mm |
| Minimum internal diameter | 42 mm |
| Type | Motors |
| Application | Rolling shutter |
| Embedded Technologies | Wired |
| Consumption in standby mode | 0 W |
Compatibility & Applications
Embedded Technologies
-
Wired
Application
-
Rolling shutter
Description

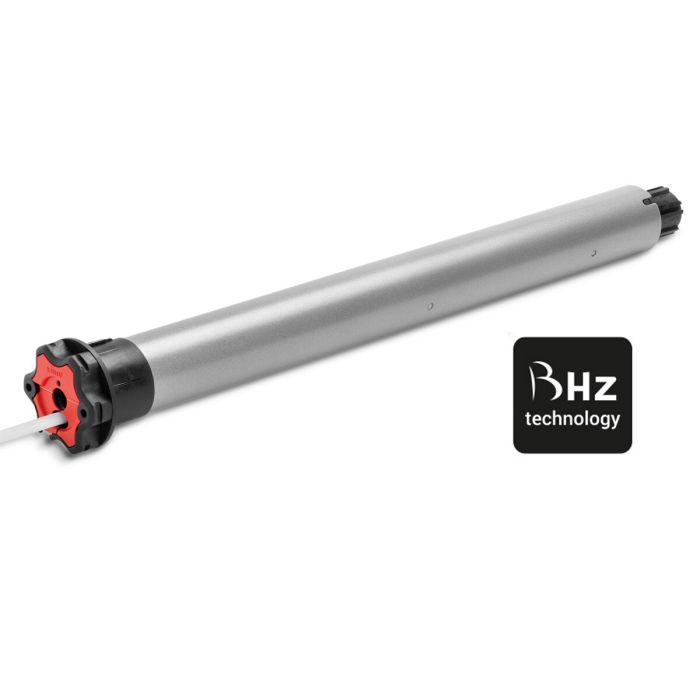

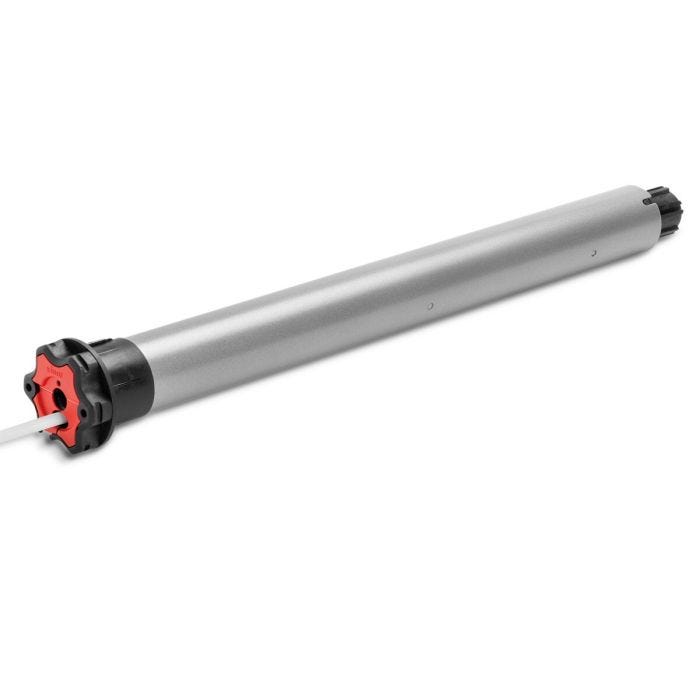

Wired motorization T5S
Universal motor range easy to integrate: manual adjustment of end-limit switch and pluggable cable.
