Technical characteristics
| Commercial Range | T5 Hz.02 |
|---|---|
| Torque | 50 Nm |
| Unwrapped height | 55 mm |
| Unwrapped width | 78 mm |
| Radio Frequency | 433.420 MHz |
| Range in house | 15 m |
| Range in open field | 150 m |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 12 rpm |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 50 mm |
| Minimum internal diameter | 47 mm |
| Type | Motors |
| Application | Awning, Exterior Vertical Screen, Rolling shutter |
| Embedded Technologies | Hz |
| Consumption in standby mode | 0.38 W |
Compatibility & Applications
Embedded Technologies
-
Hz
Application
-
Awning
-
Exterior Vertical Screen
-
Rolling shutter
Description
Torque 50 Nm - Speed 12 rpm
Power cable: 5 meters (3x0.75 mm2 wires, white H05 VVF), plugglable.
Delivered by 10

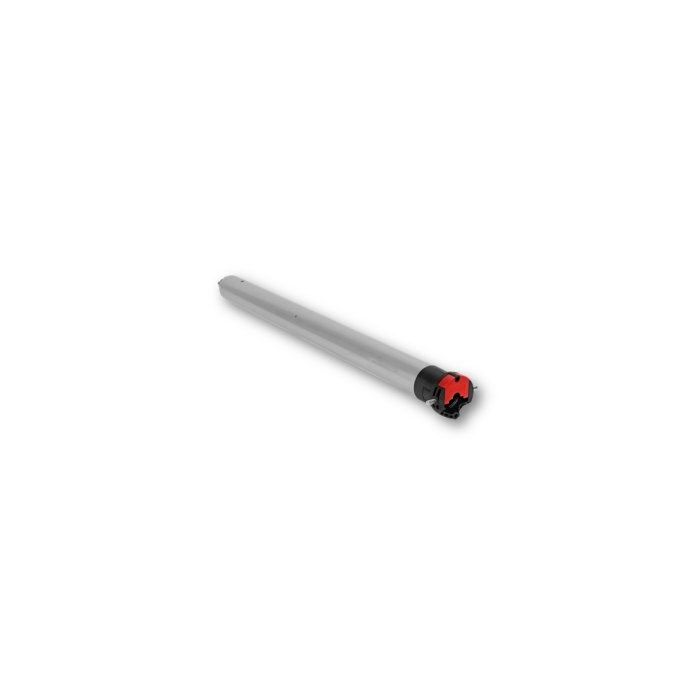

Radio electronic, Ø50 mm

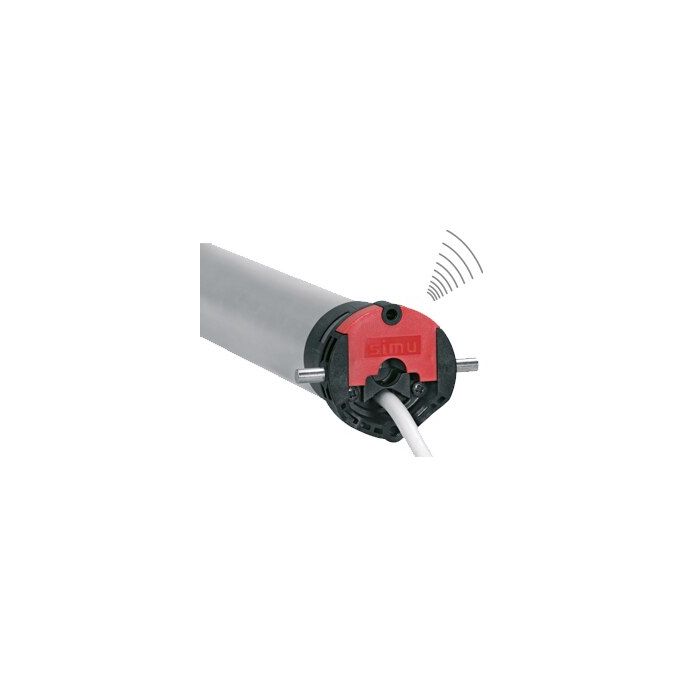

- Motor with built-in SIMU Hz radio receiver
- Electronic end-limit system
- Intermediate position function
For quick and easy installation!
- Using the control transmitter, setting up the T5 Hz.02 is quick and easy
- A wide range of torques available from 8 to 50 Nm
- Option to set the user’s favorite position (slats open for instance) which can be changed as desired
- Motor equipped with the SIMU Hz wireless control system is recognized as one of the most reliable on the market
