Technical characteristics
| Commercial Range | T5 AUTOBHZ |
|---|---|
| Torque | 10 Nm |
| Radio Frequency | 868.300 MHz / 868.950 MHz |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 17 rpm |
| Approval | CE, NF, VDE |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 50 mm |
| Minimum internal diameter | 50 mm |
| Type | Motors |
| Application | Rolling shutter |
| Embedded Technologies | BHz |
| Consumption in standby mode | 0.43 W |
Compatibility & Applications
-
BHz
-
Rolling shutter
Description
Torque 10 Nm - Speed 17 r.p.m.
Power cable: 2.5 meters (3x0,75 mm2 wires , white H05 VV-F) pluggable
Delivered by 10

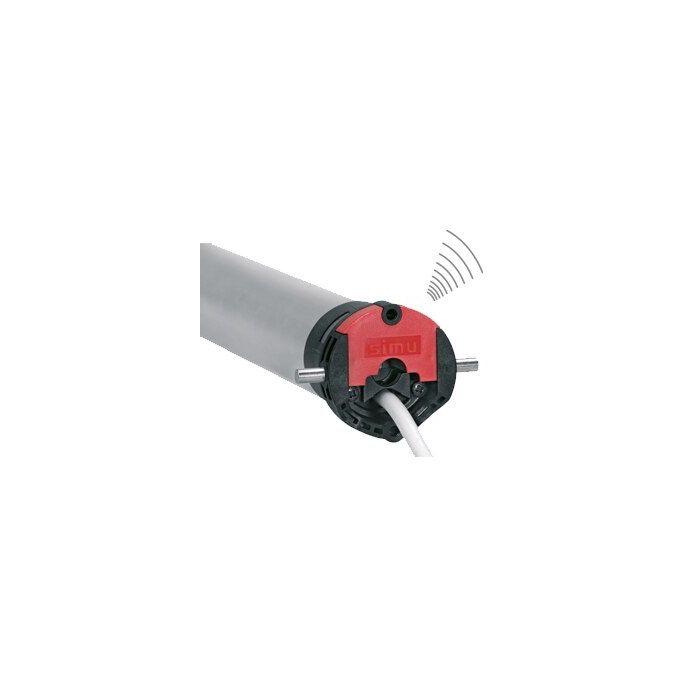

SIMU-BHz RADIO ELECTRONIC MOTOR - Ø50 mm
- Motor with built-in bidirectional radio SIMU-BHz: a real time follow-up of your installation directly on smartphone with LiveIn2. The motor gives its position on your smartphone.
- Electronic end-limit system: 1 setting mode: full automatic mode.
- Stop on obstacle function: the motor stops during the closing in the case of an obstacle.
- Frost detection function: the motor stops during the opening if the shutter curtain is stuck in the guide rails by frost or if the bottom lath is locked.
- Intermediate position function: it is possible to record a user’s favorite position.
- Simple programming: SIMU-Hz/SIMU-BHz continuity: your installation and programming habits remain the same as those of SIMU-Hz technology.
- Destressing function at the up and down end limit: in order to protect the roller shutter box and curtain.
