Technical characteristics
| Commercial Range | T5 DC |
|---|---|
| Torque | 15 Nm |
| Unwrapped height | 55 mm |
| Unwrapped width | 78 mm |
| Power supply | DC - RGE 11 - 24V |
| Speed | 17 rpm |
| Insulation class | Class III |
| Protection Index | IP 44 |
| Diameter | 50 mm |
| Unwrapped length | 621 mm |
| Minimum internal diameter | 42 mm |
| Range details | DC |
| Type | Motors |
| Application | Awning, Exterior Vertical Screen, Rolling shutter |
| Embedded Technologies | Wired |
Compatibility & Applications
-
Wired
-
Awning
-
Exterior Vertical Screen
-
Rolling shutter
Description
Torque 15 Nm - Speed 15 r.p.m. - 24 Volts
Power cable: 2.5 meters (2 x 0.75 mm2 strands, white H05 VV-F)
Delivered by 1

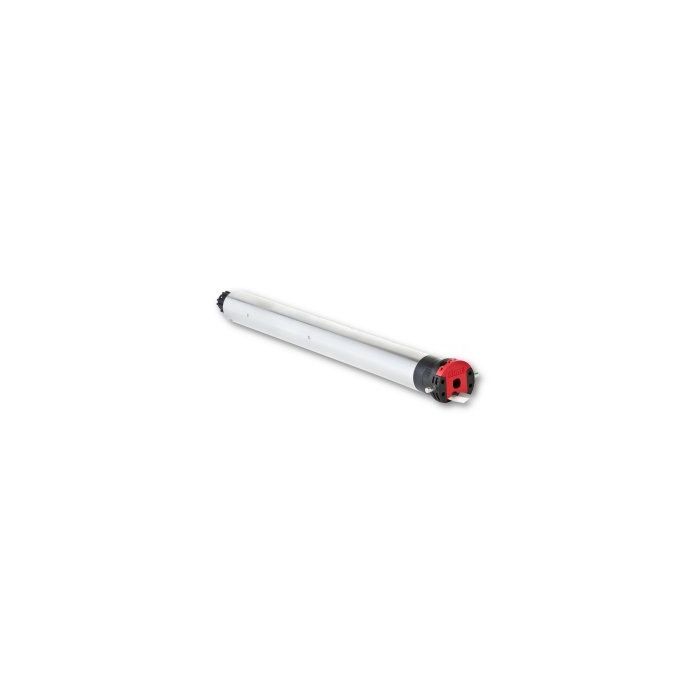

Direct current wired, Ø50 mm
- A complete range: T5 DC motors are designed for roller shutter and blind applications where a very low voltage is required for damp locations or if there is no electricity supply.
- Low consumption: the consumption of its direct current motors has been reduced as much as possible to optimise their performance.
- Reduced size: with only 621 mm long overall for the T5 DC motor, they can be integrated into ultra-short roller shutters or blinds.
- Practical: in the event of a power cut, the motors can operate on batteries or on the mains via a transformer.
- Easy to wire: no earth connection, just 1 cable with 2 wires is needed to power 12/24 volt motors.
