Technical characteristics
| Commercial Range | T5 |
|---|---|
| Torque | 15 Nm |
| Unwrapped height | 58 mm |
| Unwrapped width | 78 mm |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 17 rpm |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 50 mm |
| Unwrapped length | 521 mm |
| Minimum internal diameter | 42 mm |
| Type | Motors |
| Application | Awning, Exterior Vertical Screen, Garage door, Rolling shutter |
| Embedded Technologies | Wired |
Compatibility & Applications
Embedded Technologies
-
Wired
Application
-
Awning
-
Exterior Vertical Screen
-
Garage door
-
Rolling shutter

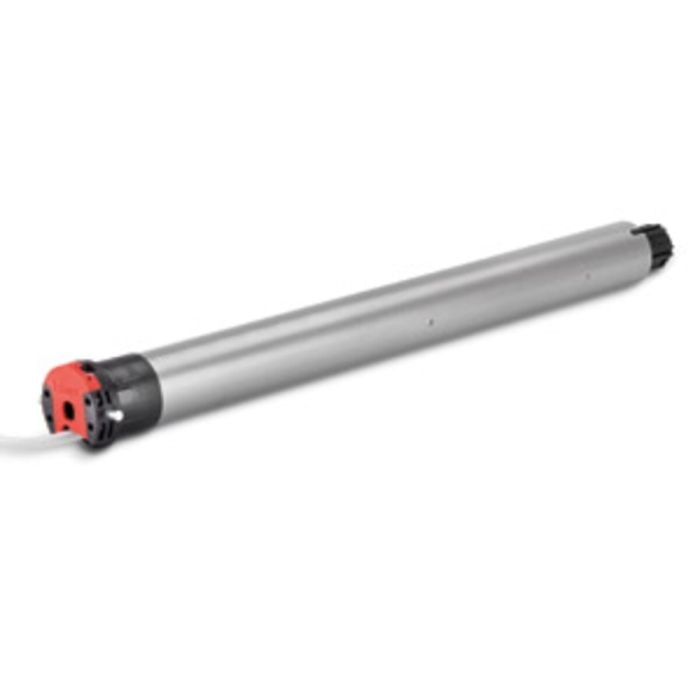

Description
Torque 15 Nm - Speed 17 rpm
Power cable: 2.5 meters (4x0.75 mm2 wires, white H05 VVF)

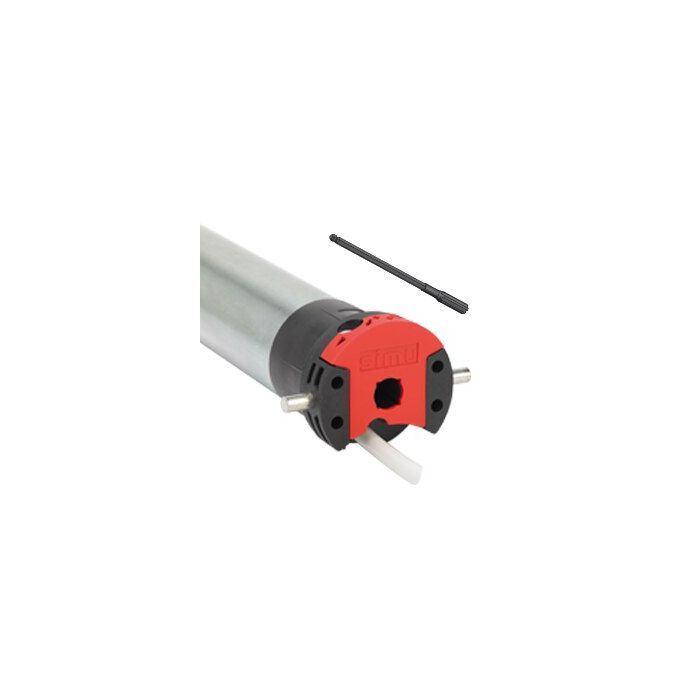

Delivered by 10 - with rigid setting screwdriver (length 125mm)
Wired, Ø50 mm
- Progressive end-limit system
- Setting of the up and down end-limits on the motor head thanks to a setting screwdriver
The reference model for standard
- Wide range of motors: a complete range of torque/speed to motorize most roller shutters & awnings or screens
- Upgrading: the T5 can be equipped with the SIMU-Hz radio technology by using the Hz receiver
