Technical characteristics
| Commercial Range | AUTOSUN 2 |
|---|---|
| Torque | 10 Nm |
| Unwrapped height | 38 mm |
| Unwrapped width | 38 mm |
| Radio Frequency | 433.420 MHz |
| Range in house | 15 m |
| Range in open field | 150 m |
| Power supply | DC - RGE 12 - 12V |
| Speed | 12 rpm |
| Approval | CE, NF |
| Insulation class | Class III |
| Protection Index | IP 44 |
| Diameter | 40 mm |
| Unwrapped length | 474 mm |
| Minimum internal diameter | 37 mm |
| Range details | DC |
| Type | Motors |
| Application | Rolling shutter |
| Embedded Technologies | Hz |
| Consumption in standby mode | 0.004 W |
Compatibility & Applications
-
Hz
-
Rolling shutter
Description

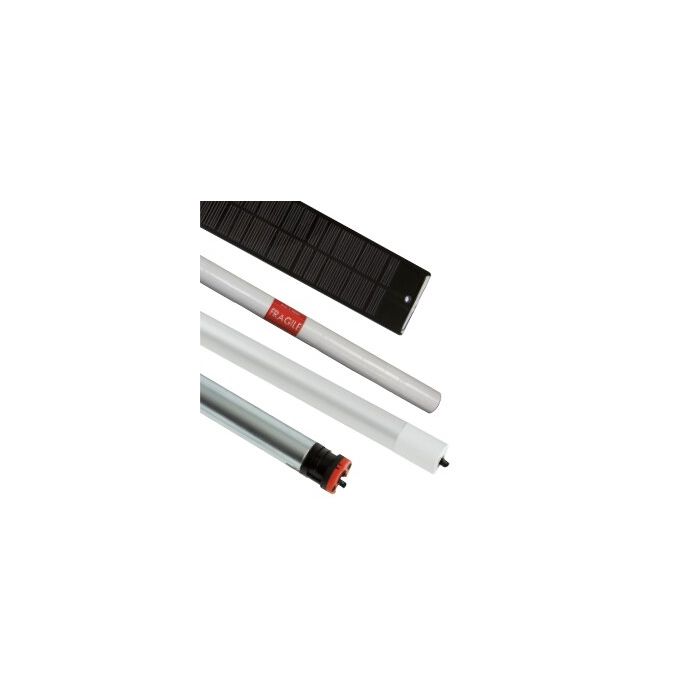

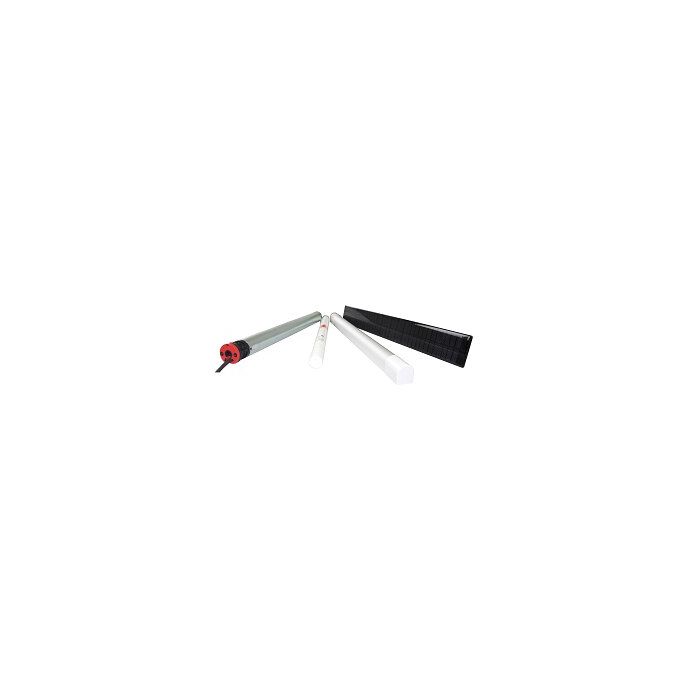

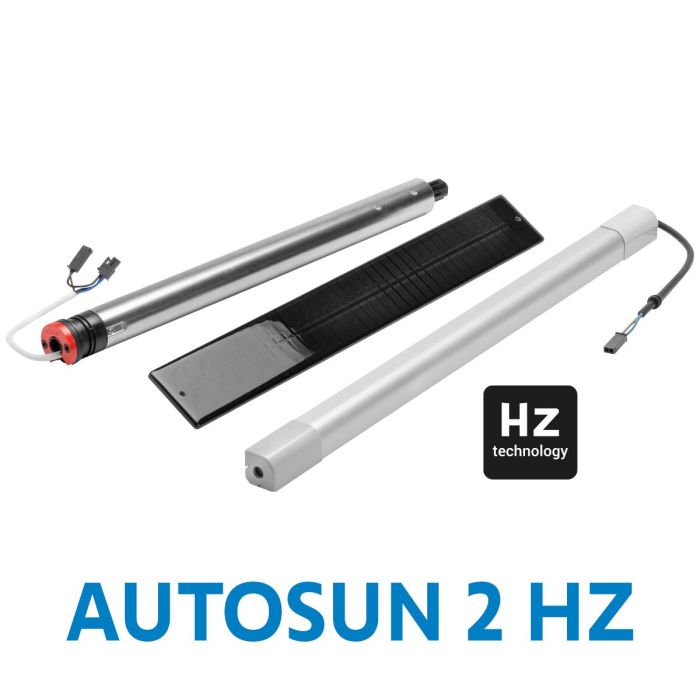

The kit is made up of one motor, one solar panel and battery in alu cover (cable 60cm), and is delivered in a single packaging, to meet at best installer needs or for one renovation.
T3.5EHz DC 10/12 motor + battery with cable of 60cm + solar panel - Delivered by 1
THE SOLAR SOLUTION 100% AUTONOMOUS, WITHOUT WORK
• Autonomous motorization system for roof and facade roller shutters, operating with solar energy, a free, clean and renewable energy.
• No wiring: AUTOSUN does not need to be connected neither to the electrical network nor to control points (SIMU-Hz radio technology), which means no degradation of interior walls.
• Battery with a design quarter round: to reduce needed space behind the guide rail or inside the roller shutter box.
• Optimized outputs: AUTOSUN has been designed to run in most geographical area.
• Autonomy of the system: 45 days without sun, 2 cycles per day.
