Technical characteristics
| Commercial Range | AUTOSUN 2 BHZ |
|---|---|
| Torque | 6 Nm |
| Unwrapped height | 38 mm |
| Unwrapped width | 38 mm |
| Radio Frequency | 868.250 MHz / 868.950 MHz / 869.850 MHz |
| Range in house | 15 m |
| Range in open field | 150 m |
| Power supply | DC - RGE 12 - 12V |
| Speed | 18 rpm |
| Approval | CE, NF |
| Insulation class | Class III |
| Protection Index | IP 44 |
| Diameter | 40 mm |
| Unwrapped length | 474 mm |
| Minimum internal diameter | 37 mm |
| Type | Motors |
| Application | Rolling shutter |
| Embedded Technologies | BHz |
| Consumption in standby mode | 0 W |
Compatibility & Applications
-
BHz
-
Rolling shutter
Description

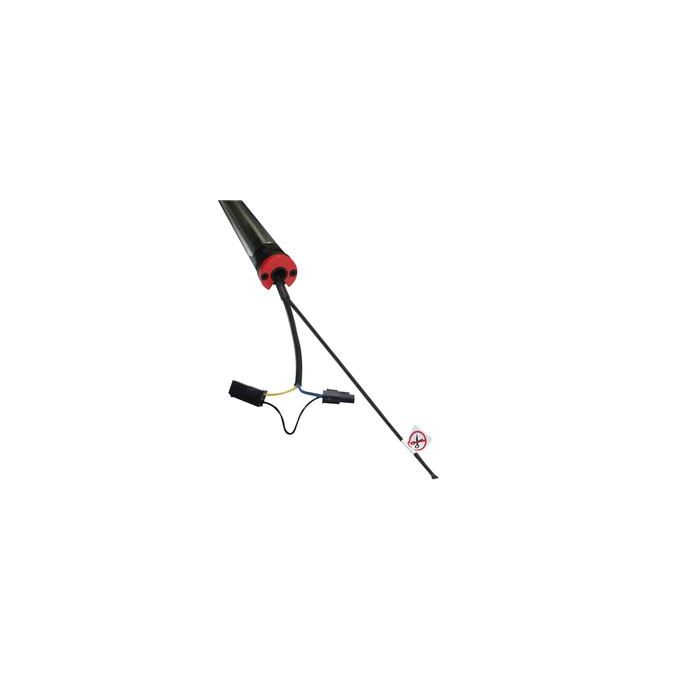

Motor with long. of cable 0.2 meters, 3x0.75 mm2 wires, Black PVC Ø 5mm with two connectors - Delivered by 10
- PVC cable of 20cm, 2 connectors 2 points with mistake-proofing and on antenna of 30cm.
- Reduced size of the connectors to ease the integration inside the side frame.
- Radio technology BHz
- Adjustment of the end-limits: automatic, semi-automatic, manual.
- Adjustment of the end limit with reduced speed in manual mode to ease the setting.
- Stop on obstacle function: the motor will stop during the closing if it meets an obstacle.
- Frost detection function: the motor will stop during the opening if the shutter curtain is stuck in the guide rails by frost or if the bottom lath is locked.
- Intermediate position function: it is possible to record a user’s favorite position.
- Push “STOP” button of the transmitter to move the roller shutter to the favorite position.
- At UP & DOWN end-limit, the motor will slowly decrease its speed while reaching its end-limits.
- Compatible with the SIMU-BHZ controls and BHZ sun sensor through LiveIn2.
