Technical characteristics
| Commercial Range | AUTOSUN 2 BHZ |
|---|---|
| Torque | 3 Nm |
| Radio Frequency | 868.250 MHz / 868.950 MHz / 869.850 MHz |
| Power supply | DC - RGE 12 - 12V |
| Speed | 23 rpm |
| Approval | CE, NF |
| Insulation class | Class III |
| Protection Index | IP 44 |
| Diameter | 40 mm |
| Minimum internal diameter | 37 mm |
| Type | Motors |
| Application | Rolling shutter |
| Embedded Technologies | BHz |
| Consumption in standby mode | 0 W |
Compatibility & Applications
-
BHz
-
Rolling shutter
Description

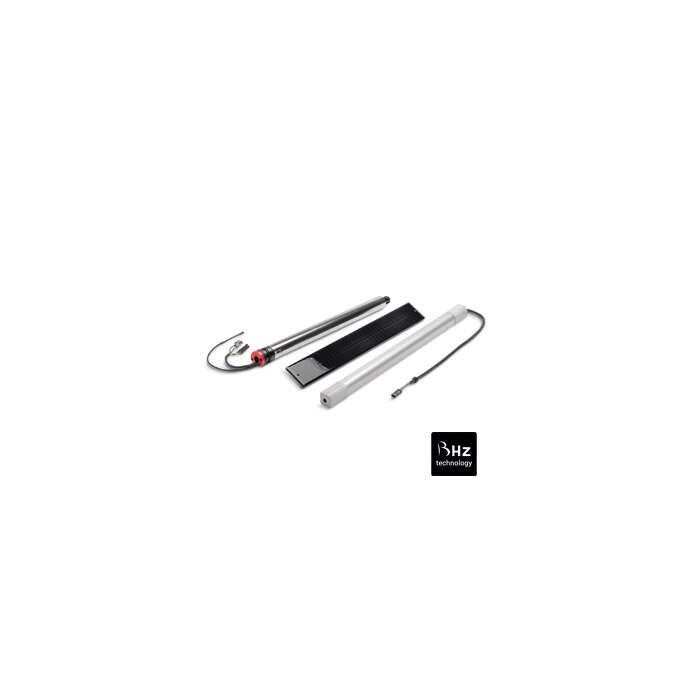

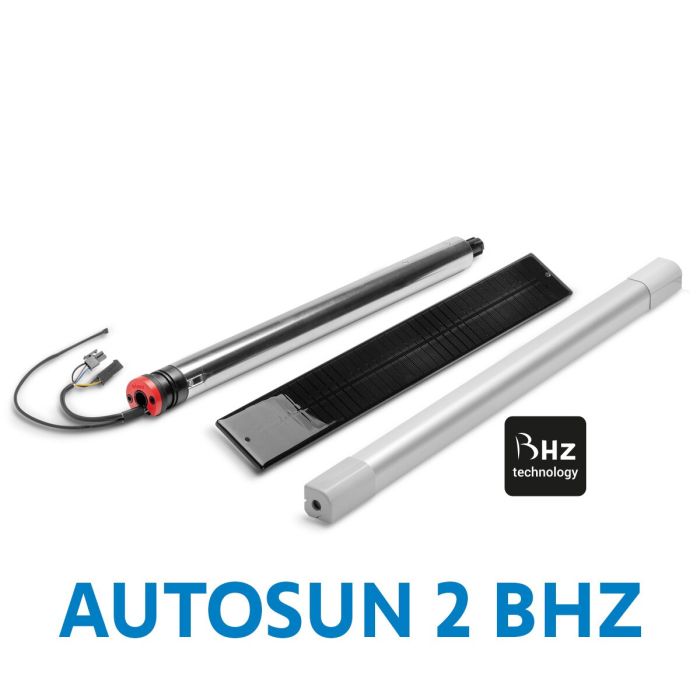

The kit is made up of one motor, one solar panel and battery in alu cover (cable 60cm), and is delivered in a single packaging, to meet at best installer needs or for one renovation.
T3.5EBHZ DC 3/23 motor + battery with cable of 60cm + solar panel - Delivered by 1
100% AUTONOMOUS SOLAR SOLUTION, WITHOUT WIRING
- AUTONOMOUS MOTORIZATION SYSTEM for roof and facade roller shutters, operating with solar energy, a free, clean and renewable energy.
- NO WIRING: AUTOSUN 2 BHZ does not need to be connected neither to the electrical network nor to control points (SIMU-Hz radio technology), which means no degradation of interior walls.
- OPTIMIZED OUTPUTS: AUTOSUN 2 BHZ has been designed to run in most geographical area.
- AUTONOMY OF THE SYSTEM: 45 DAYS WITHOUT SUN, 2 cycles per day.
WHAT IS AUTOSUN BHZ ?
A new autonomous system with 3 new BHZ motors (bidirectional), using the 3 current NIMH batteries such as the 2 current choices of solar panels to motorize and be integrated into all façade or roof roller shutters of the market.
