Technical characteristics
| Commercial Range | T3.5 E BHZ |
|---|---|
| Torque | 13 Nm |
| Unwrapped height | 38 mm |
| Unwrapped width | 38 mm |
| Radio Frequency | 868.250 MHz / 868.950 MHz / 869.850 MHz |
| Range in house | 15 m |
| Range in open field | 150 m |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 10 rpm |
| Insulation class | Class II |
| Protection Index | IP 44 |
| Diameter | 40 mm |
| Unwrapped length | 510 mm |
| Minimum internal diameter | 37 mm |
| Type | Motors |
| Application | Rolling shutter |
| Embedded Technologies | BHz |
| Consumption in standby mode | 0.49 W |
Compatibility & Applications
-
BHz
-
Rolling shutter
Description
Torque 13 Nm - Speed 10 r.p.m.
Motor with cable 3 meters (2x0,75 mm2 wires , white H05 VV-F)
Delivered by 1

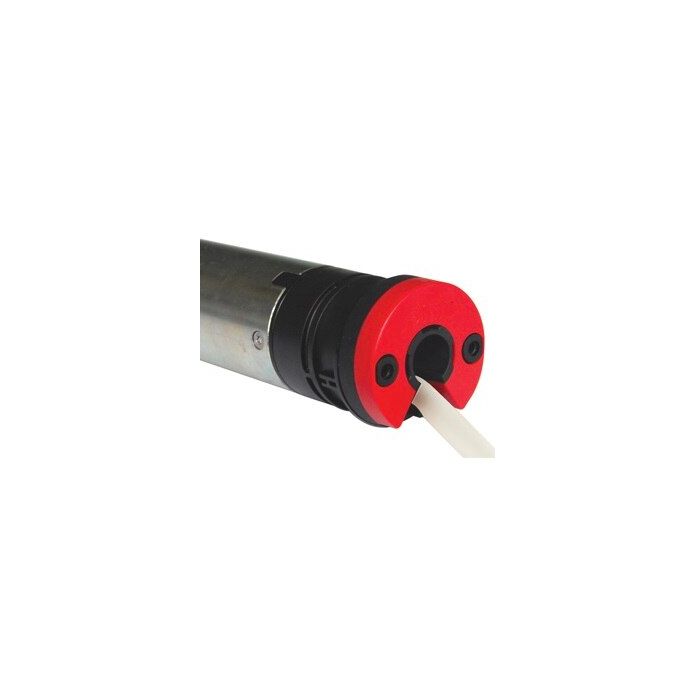

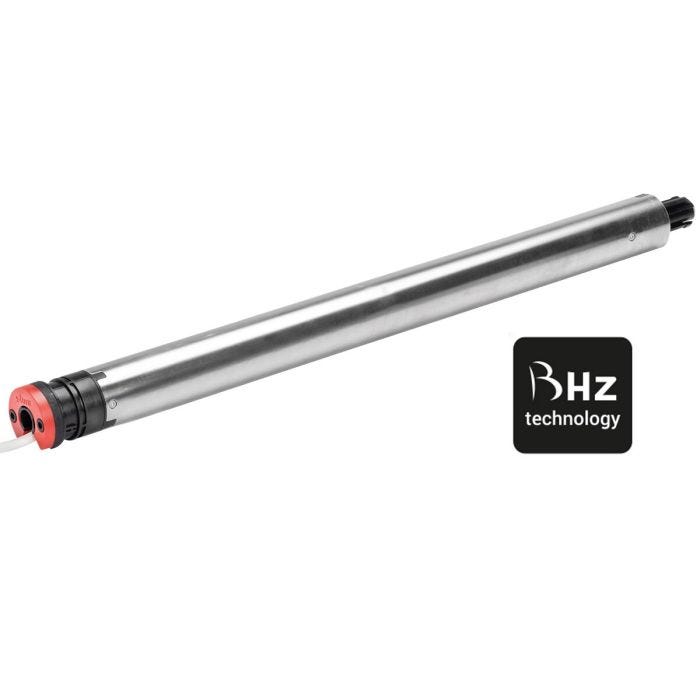

SIMU BHZ RADIO ELECTRONIC MOTOR DIAM 40
- MOTOR WITH BUILT-IN BIDIRECTIONAL RADIO SIMU-BHz: a real time follow-up of your installation directly on smartphone with Livein2. The motor gives its position on your smartphone.
- ELECTRONIC END-LIMIT SYSTEM: 4 possible setting modes: automatic mode, down semi-automatic mode, up semi-automatic mode, manual mode.
- STOP ON OBSTACLE FUNCTION: the motor stops during the closing in the case of an obstacle.
- FROST DETECTION FUNCTION: the motor stops during the opening if the shutter curtain is stuck in the guide rails by frost or if the bottom lath is locked.
- INTERMEDIATE POSITION FUNCTION: it is possibe to record a user’s favorite position.
- CLASSE II MOTOR: no earth connexion repuired.
- SIMPLE PROGRAMMING: SIMU-Hz/SIMU-BHz continuity: your installation and programming habits remain the same as those of SIMU-Hz technology.
