Technical characteristics
| Commercial Range | SOLISHADE |
|---|---|
| Torque | 10 Nm |
| Unwrapped height | 38 mm |
| Unwrapped width | 38 mm |
| Radio Frequency | 433.420 MHz |
| Range in house | 15 m |
| Range in open field | 150 m |
| Power supply | DC - RGE 12 - 12V |
| Speed | 12 rpm |
| Approval | CE |
| Insulation class | Class II |
| Protection Index | IP 44 |
| Diameter | 40 mm |
| Unwrapped length | 474 mm |
| Minimum internal diameter | 40 mm |
| Range details | DC |
| Type | Motors |
| Application | Awning, Exterior Vertical Screen |
| Embedded Technologies | Hz |
| Consumption in standby mode | 0 W |
Compatibility & Applications
Embedded Technologies
-
Hz
Application
-
Awning
-
Exterior Vertical Screen
Description

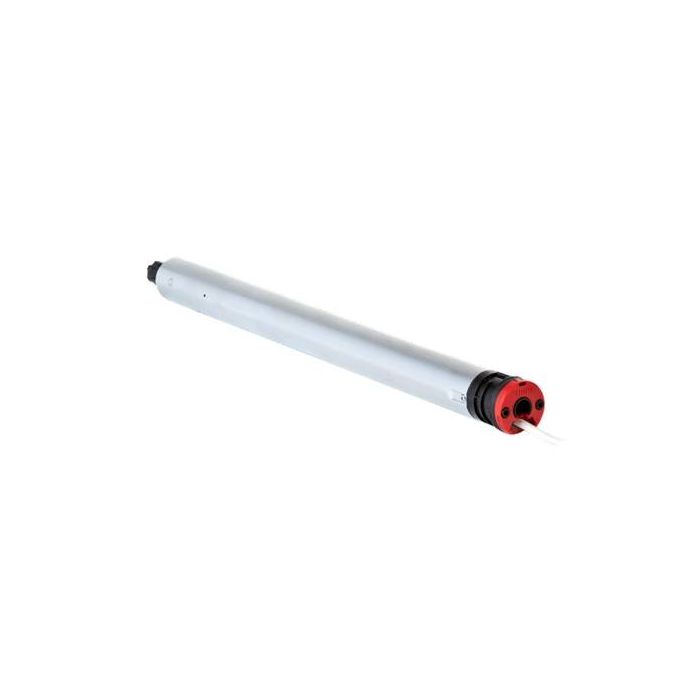

Electronic radio motor Ø 40mm – 12 Volts Direct current

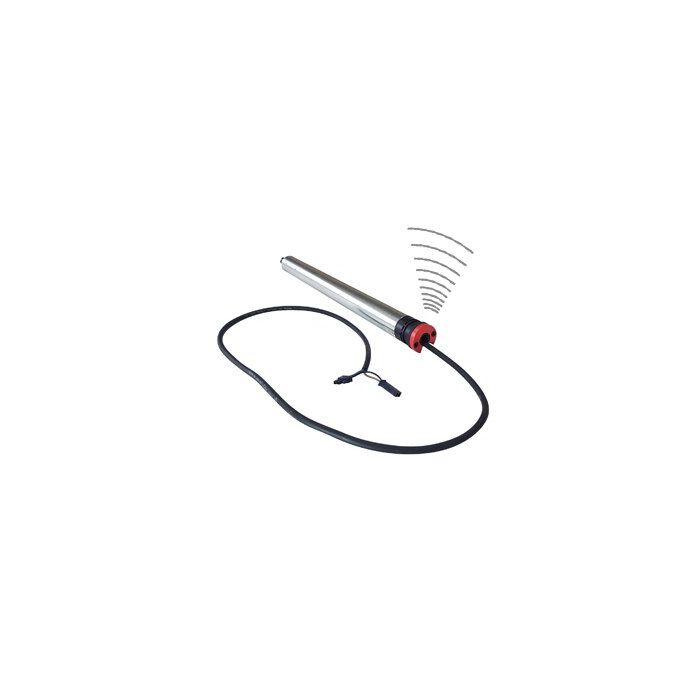

Power cable: 1 meter (3x0.75 mm2 wires) black RNF with 2 connectors 2-points.
Delivered by 100
MOTORIZE YOUR AWNING THANKS TO THE SUN, IT’S POSSIBLE!
– Motor with integrated SIMU-HZ radio receiver electronic end-limit system with 2 modes: UP SEMI-AUTOMATIC and FULLY MANUAL mode
– Remote setting of the up and down end-limits from a SIMU-Hz transmitter for MANUAL mode (excepted a sequential Hz transmitter).
– Intermediate position function: it is possible to record a user’s favorite position.
– Functional and sequential compatible transmitter
