Technical characteristics
| Commercial Range | SOLISHADE |
|---|---|
| Torque | 6 Nm |
| Unwrapped height | 38 mm |
| Unwrapped width | 38 mm |
| Radio Frequency | 433.420 MHz |
| Range in house | 15 m |
| Range in open field | 150 m |
| Power supply | DC - RGE 12 - 12V |
| Speed | 18 rpm |
| Approval | CE |
| Insulation class | Class II |
| Protection Index | IP 44 |
| Diameter | 40 mm |
| Unwrapped length | 474 mm |
| Minimum internal diameter | 40 mm |
| Range details | DC |
| Type | Motors |
| Application | Awning, Exterior Vertical Screen |
| Embedded Technologies | Hz |
| Consumption in standby mode | 0 W |
Compatibility & Applications
Embedded Technologies
-
Hz
Application
-
Awning
-
Exterior Vertical Screen
Description

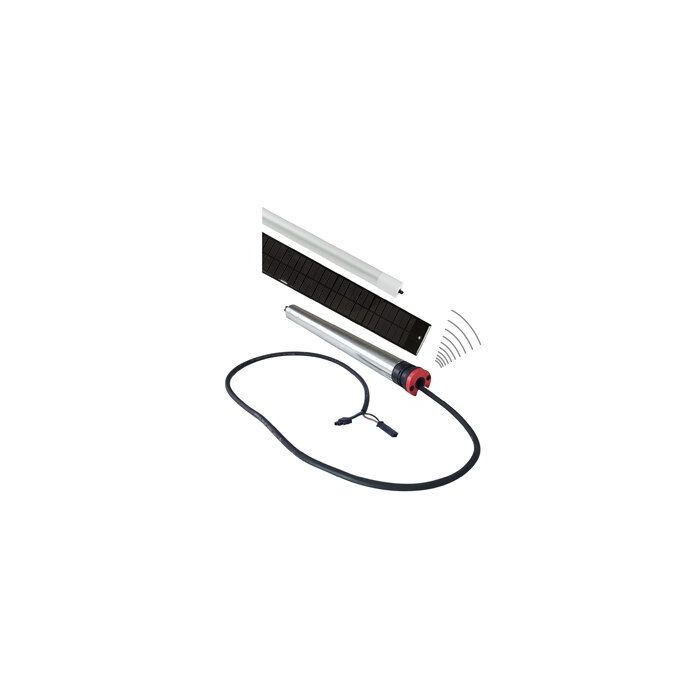

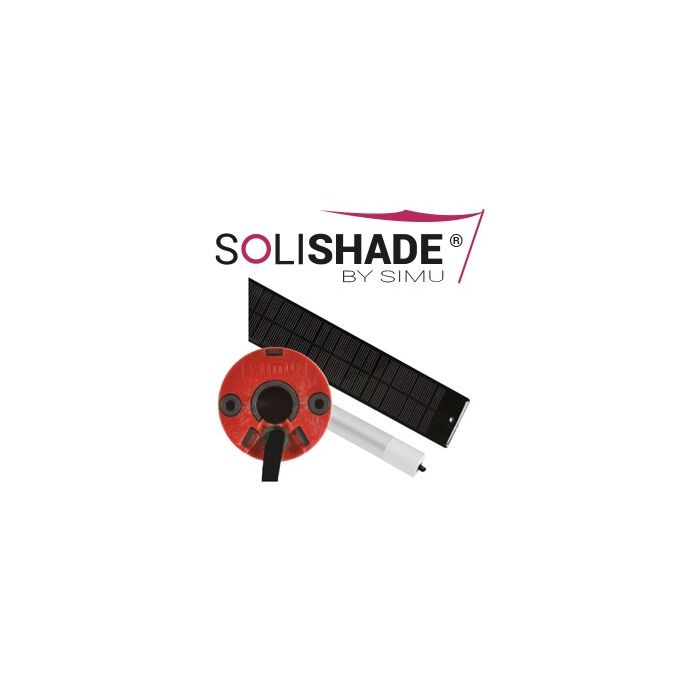

The kit is made up of one motor, one solar panel and battery in alu cover (cable 60cm), and is delivered in a single packaging, to meet at best installer needs or for one renovation.
Torque 06 Nm - Speed 18 r.p.m.
Delivered by 1
Documentation
Installation guide_Solishade_T3.5DC ESP HZ_5151225D
Installation Guide BATTERIE COQUE (quart de rond)- 5144624B (FR-EN-DE-NL-PL-CZ)
Installation Guide_PANNEAU SOLAIRE // SOLAR PANEL_5117585B (FR-EN-DE-NL- ES - PL-CZ)
-- Product leaflet SOLISHADE T3.5 ESP Hz DC (EN)
-- Fiche produit SOLISHADE T3.5 ESP Hz CC (FR)
