Technical characteristics
| Commercial Range | T3.5 Hz.02 |
|---|---|
| Torque | 13 Nm |
| Unwrapped height | 382 mm |
| Unwrapped width | 382 mm |
| Radio Frequency | 433.420 MHz |
| Range in house | 15 m |
| Range in open field | 150 m |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 10 rpm |
| Insulation class | Class II |
| Protection Index | IP 44 |
| Diameter | 40 mm |
| Unwrapped length | 510 mm |
| Minimum internal diameter | 37 mm |
| Type | Motors |
| Application | Rolling shutter |
| Embedded Technologies | Hz |
| Consumption in standby mode | 0.37 W |
Compatibility & Applications
Embedded Technologies
-
Hz
Application
-
Rolling shutter
Description
Power cable of 3 meters (2x0.75 mm2 strands, white H05 VV-F)
Torque 13 Nm - Speed 10 r.p.m.
Delivered by 10

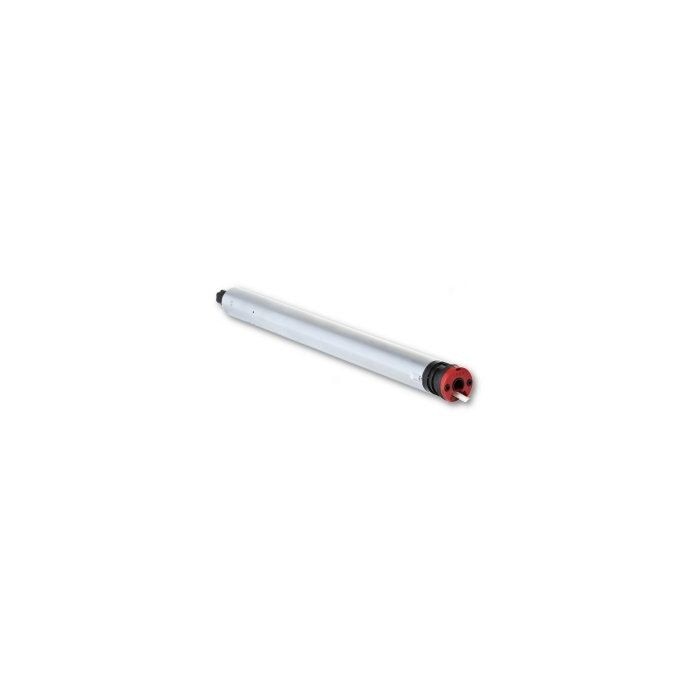

Radio electronic, Ø 40mm

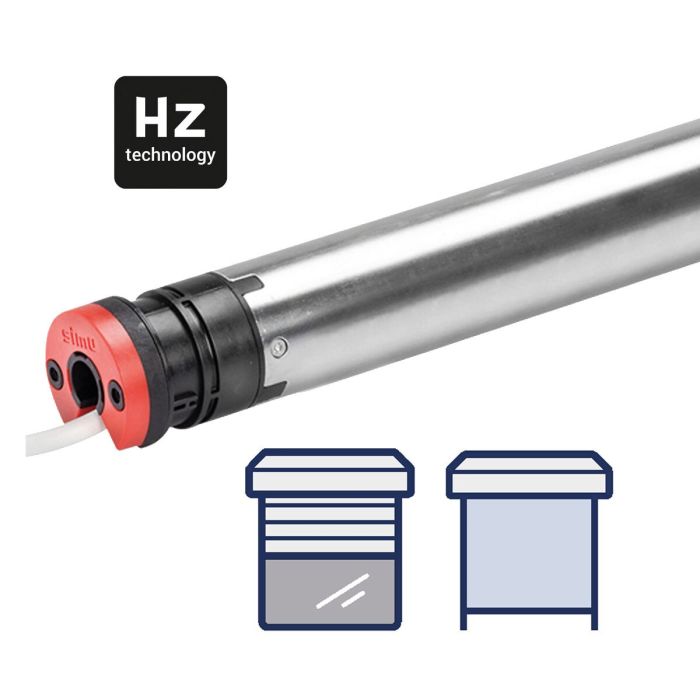

- Motor with built-in SIMU-Hz radio receiver.
- Electronic end-limit system.
- Remote setting of up and down end-limit from a SIMU-Hz transmitter. (excepted sequential hz transmitter).
- Intermediate position function: it is possible to record a user’s favorite position.
- Class II motor: no earth connection required.
- Motor protection: if the crown does not turn, the motor stops itself.
