Technical characteristics
| Commercial Range | T3.5 Hz.02 |
|---|---|
| Torque | 3 Nm |
| Unwrapped height | 38 mm |
| Unwrapped width | 38 mm |
| Radio Frequency | 433.420 MHz |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 30 rpm |
| Insulation class | Class II |
| Protection Index | IP 44 |
| Diameter | 40 mm |
| Minimum internal diameter | 37 mm |
| Application | Rolling shutter |
| Embedded Technologies | Hz |
| Consumption in standby mode | 0.37 W |
Compatibility & Applications
-
Hz
-
Rolling shutter
Description

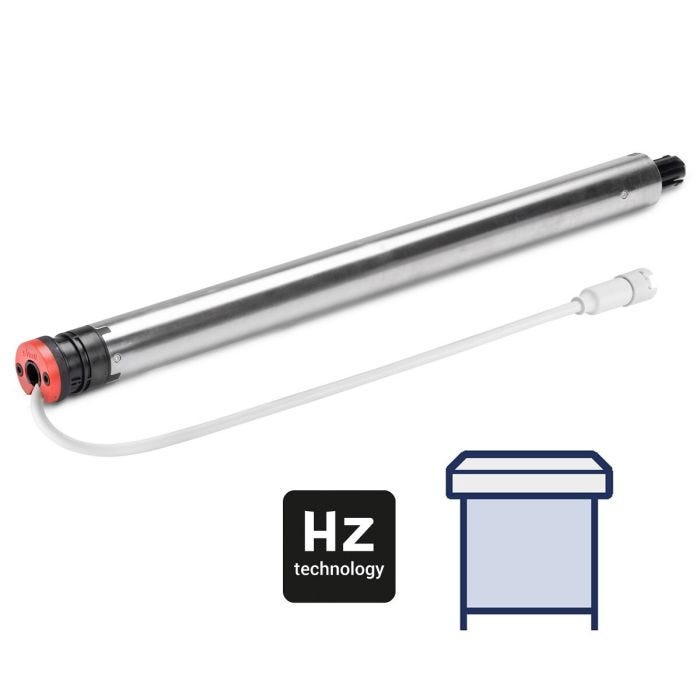

Radio electronic, diam 40MM
- Motor with built-in Simu-Hz radio receiver.
- Electronic end-limit system.
- Remote setting of up and down end-limit…from a SIMU-Hz transmitter. (excepted sequential hz transmitter).
- Intermediate position function…it is possible to record a user’s favorite position.
- Class II motor…no earth connection required.
Range information:
Choose an intelligent and discreet motor !
- Easy and quick: the UP and DOWN end limits are directly adjusted from the SIMU Hz transmitter.
- High performance: with 4 torques from 3 to 13 Nm, the T3,5 Hz02 motors can equipped roller shutter.
- Radio integrated motors up to 30 kg.
- The ideal solution for renovation: CLASS II motor, no earth connection is required.
