Technical characteristics
| Commercial Range | T3.5 |
|---|---|
| Torque | 4 Nm |
| Unwrapped height | 38 mm |
| Unwrapped width | 38 mm |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 16 rpm |
| Insulation class | Class II |
| Protection Index | IP 44 |
| Diameter | 40 mm |
| Unwrapped length | 414 mm |
| Minimum internal diameter | 37 mm |
| Type | Motors |
| Application | Awning, Exterior Vertical Screen, Rolling shutter |
| Embedded Technologies | Wired |
| Consumption in standby mode | 0 W |
Compatibility & Applications
Embedded Technologies
-
Wired
Application
-
Awning
-
Exterior Vertical Screen
-
Rolling shutter
Description
2,5 meters white cable (three 0.75 mm2 strands, white H05 VV-F)
Torque 04 Nm - Speed 16 r.p.m. - Reduced dimensions 414 mm
Delivered by 10
(for screens)

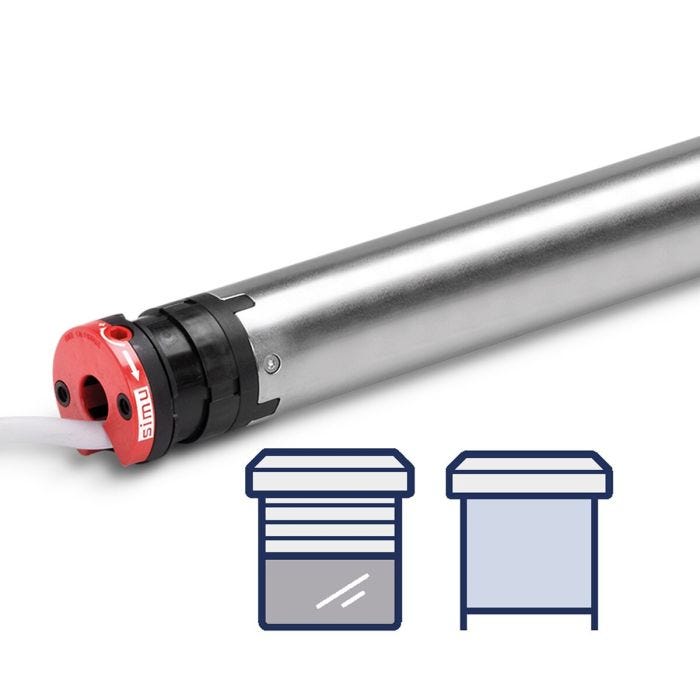

Wired motor Ø40 mm
- Progressive end-limit system.
- Setting of the up and down end-limits directly on the motor head.
- Class II motor: no earth connection required.
The standard wired motor with manual limit switches
- Available in 5 different torques: from 3 Nm to 13 Nm, the T3.5 motor can be fitted to most rolling shutters or screens.
- The reduced dimensions of the 4 Nm motor: 414mm, ideal solution for motorizing small roller shutters.
