Technical characteristics
| Commercial Range | Three-phase control board |
|---|---|
| Unwrapped height | 100 mm |
| Unwrapped width | 193 mm |
| Protection Index | IP 54 |
| Unwrapped length | 262 mm |
| Color / Finish | Grey |
| Type | Controls |
| Application | Industrial & commercial closure |
| Embedded Technologies | Wired |
Compatibility & Applications
Embedded Technologies
-
Wired
Application
-
Industrial & commercial closure
Description

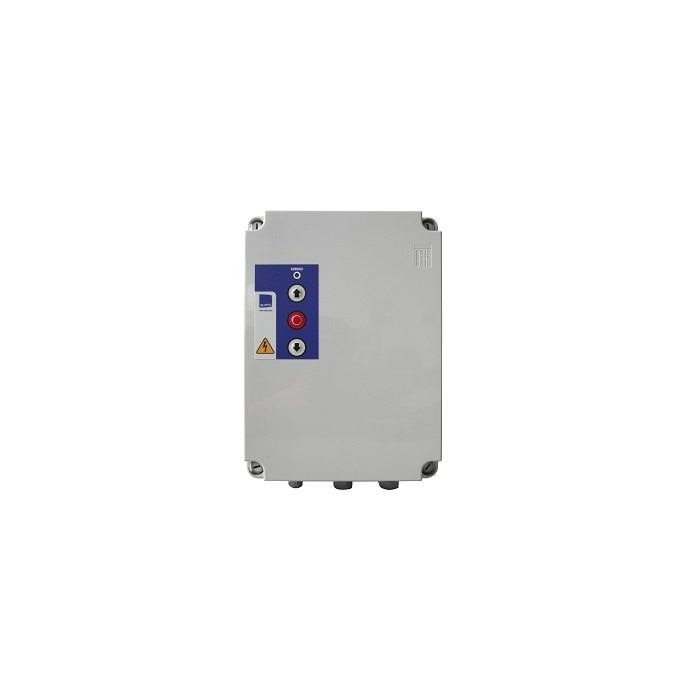

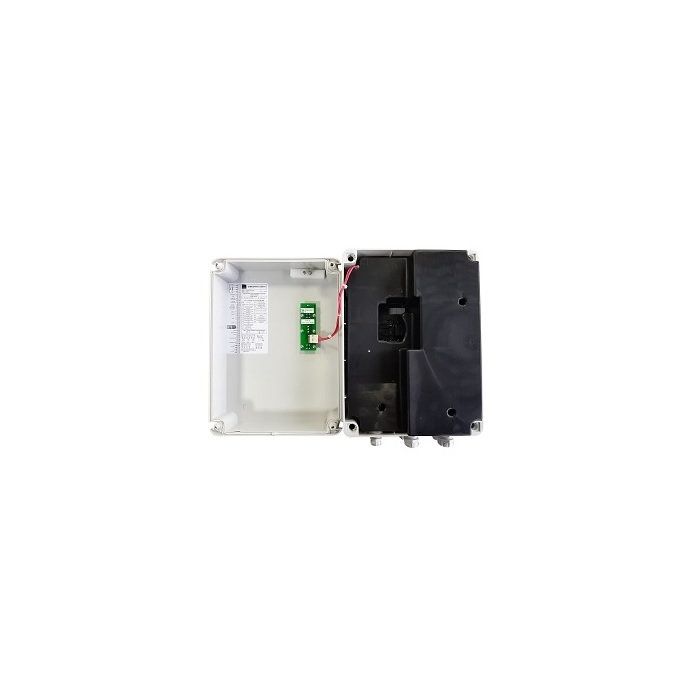

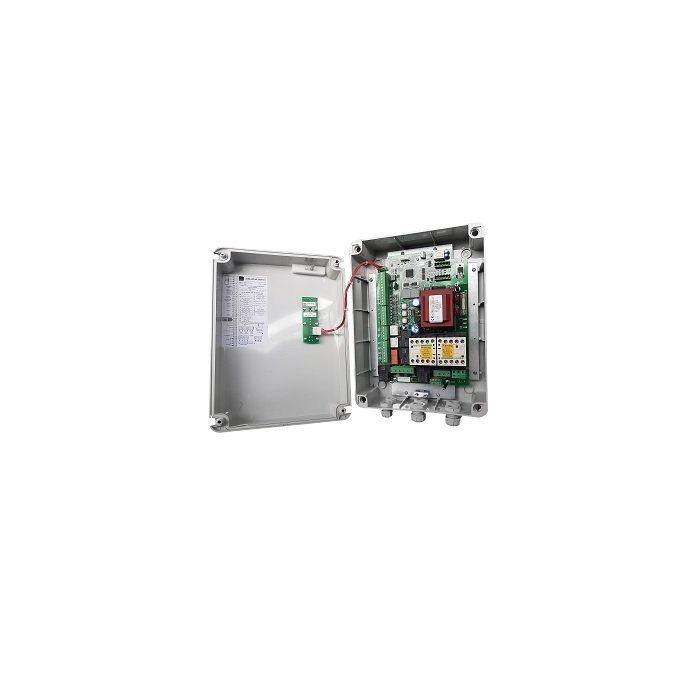

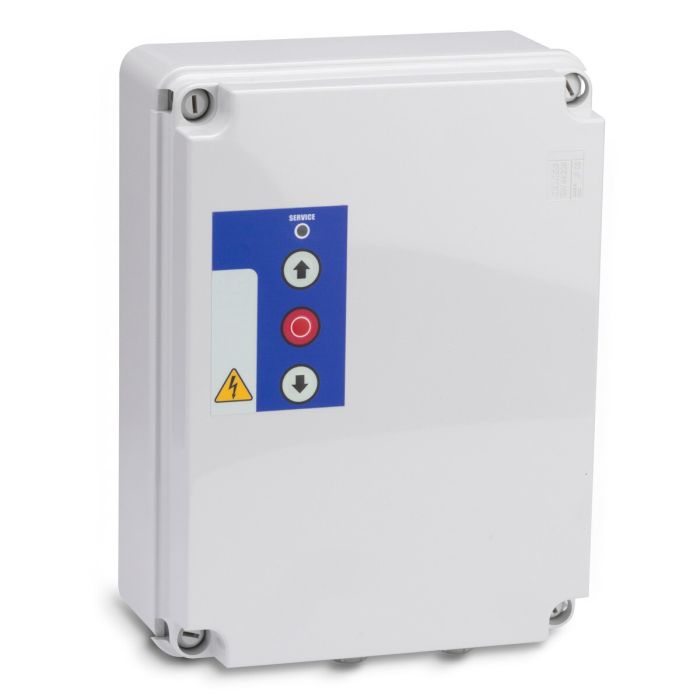

A COMPLETE, EASY-TO-INSTALL CONTROL BOX FOR THREE-PHASE MOTORS
- COMPREHENSIVE FUNCTIONS TO SECURE, SIMPLIFY AND PROTECT ACCESS POINTS
- 4 control modes (press-and-hold, mixed, impulse, automatic)
- Compatible with the necessary safety accessories (4 sets of photocells, safety edge, flashing light)
- Can be combined with numerous accessories (badge reader, clock, alarm, radio receiver)
- EASY TO CONNECT thanks to removable terminal blocks and dedicated inputs for each safety accessory
- EASY TO PROGRAM
- 3 standard pre-set programs (according to the selected operating mode and the selected safety edge) make it easy to set up and use.
- 2 levels of programming (level 1 and Expert) that allow you to personalise the system to suit your installation.
- ADAPTED TO BOTH METAL CURTAINS AND GRILLES AND TO SECTIONAL DOORS
