ESSENTIAL TO CONTROL THREE-PHASE MOTORS

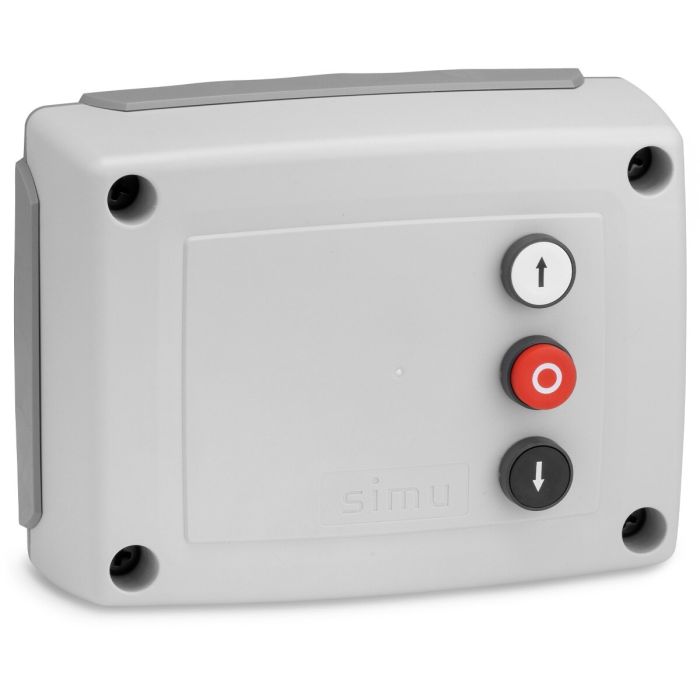

- COMPATIBLE WITH THREE-PHASE MOTORS: SD350 controls industrial rolling doors. It can be associated with all three-phase SIMU motors: T9 and SIMUBOX.
- TO GO TO THE ESSENTIAL: only connect a safety brake and control the door in maintained pressure mode or mixed mode (if the installation allows it).
- A FAST INSTALLATION: clearly identified connections.
- USEFUL TIP: Write the installation date and stick the motor removable sticker inside SD350 in order to make a quick identification in case of after sales service.

- POWER SUPPLY:

• Triphasée 230V 3~ / 50Hz
• Triphasée 400V 3N~ / 50Hz
• Triphasée 220V 3~ / 60Hz

- MOTOR MAXIMUM POWER: 1300 W
- OPERATING TEMPERATURE:  from +5°C to +40°C
- PROTECTION INDICE: IP44
- DIMENSIONS: 262 x 193 x 100 mm
- WEIGHT: 0.980kg
