Technical characteristics
| Commercial Range | SIMUBOX SI |
|---|---|
| Torque | 500 Nm |
| Unwrapped height | 341 mm |
| Unwrapped width | 145 mm |
| Power supply | AC-RGE10-400V/50HZ THREE-PHASE |
| Speed | 15 rpm |
| Approval | CE |
| Insulation class | Class I |
| Protection Index | IP 54 |
| Unwrapped length | 535 mm |
| Type | Motors |
| Application | Industrial & commercial closure |
| Embedded Technologies | Wired |
| Consumption in standby mode | 0 W |
Compatibility & Applications
Embedded Technologies
-
Wired
Application
-
Industrial & commercial closure
Description

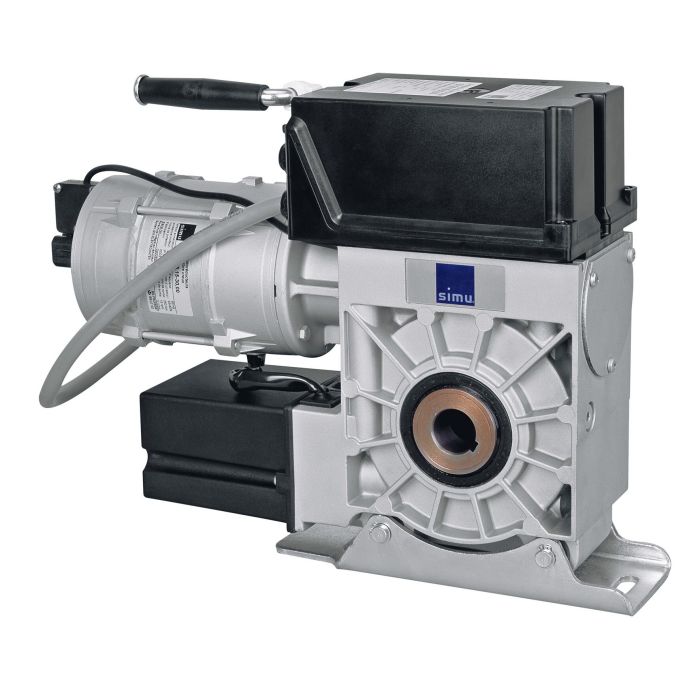

Three-phase with built-in safety brake for rolling doors
- torque range from 250 to 1000Nm to lift doors over 800kg!
- built-in safety brake with automatic operation in case of wheel or worm screw failure.
A motor with more than you will ever need !
- To meet the EN 12604 requirements more easily, SIMUBOX SI has a safety brake which is tripped if any of the internal motor components fail.
- It also has as standard a removable control panel so that hard wired control points and safety accessories can be connected directly.
- SIMUBOX SI is equipped with a manual override system (using a chain or crank handle) which guarantees that the curtain can always be moved in the event of a power failure.
