Technical characteristics
| Commercial Range | SIMUBOX |
|---|---|
| Torque | 200 Nm |
| Unwrapped height | 280 mm |
| Unwrapped width | 120 mm |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 12 rpm |
| Approval | CE |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Unwrapped length | 410 mm |
| Type | Motors |
| Application | Industrial & commercial closure |
| Embedded Technologies | Wired |
| Consumption in standby mode | 0 W |
Compatibility & Applications
Embedded Technologies
-
Wired
Application
-
Industrial & commercial closure
Description

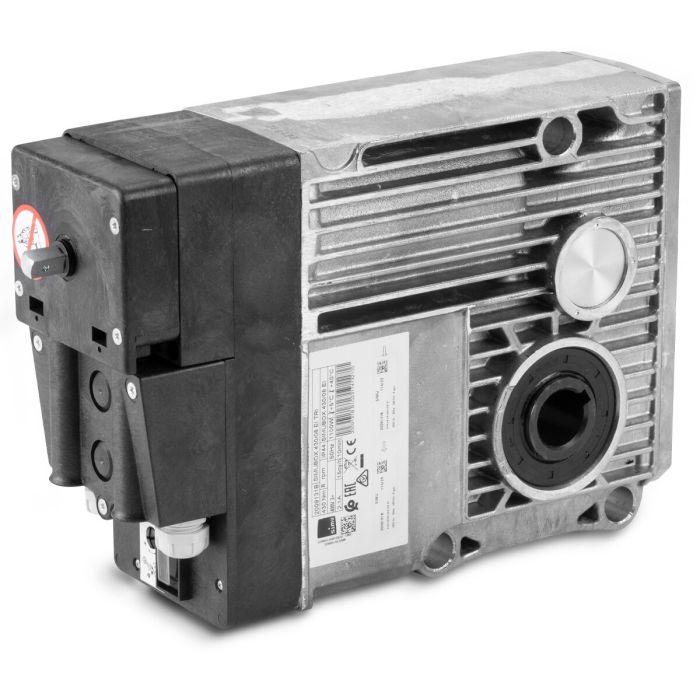

SINGLE-PHASE SIMUBOX
FOR INDUSTRIAL ROLLING DOORS
Â
Torque : 200Nm
Speed : 12 rpm
Control mode : keyswitch in unstable mode
Compact dimensions for an easy installation at the end of the axis
Double manual override system integrated : short crank and chain guide included
FOR INDUSTRIAL ROLLING DOORS
Â
Torque : 200Nm
Speed : 12 rpm
Control mode : keyswitch in unstable mode
Compact dimensions for an easy installation at the end of the axis
Double manual override system integrated : short crank and chain guide included
Documentation
Installation guide SIMUBOX MONOPHASÉ // SINGLE-PHASE_5141058E_2024
Installation Guide SIMUBOX EI (TRIPHASÉ) // EI (THREE-PHASE)_5141057F_2024
-- Fiche produit moteurs extérieurs SIMUBOX - 2024
-- Fiche produit SIMUBOX pour portes sectionnelles (FR)
-- Product leaflet Side motors SIMUBOX - 2024
-- Product leaflet SIMUBOX for sectional doors (EN)
