CONNECTION KIT SE ACCESS
Reference : 9021160
This kit ensures the connection between the safety edge rubber profile and the control box.
It is compatible with rubber profiles reference 9015221 and 9019568 and control boxes RSA Hz, RSA Hz Pro and SD510.

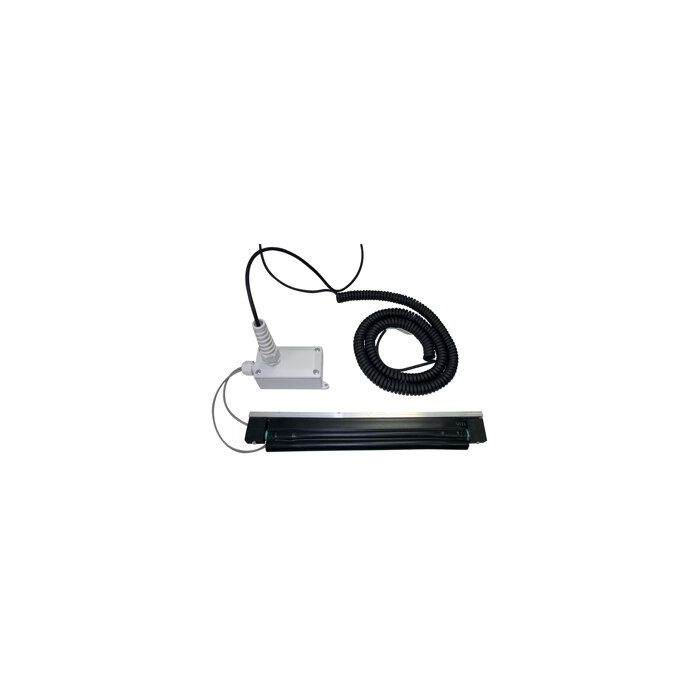

The kit is made of :
See the range
It is compatible with rubber profiles reference 9015221 and 9019568 and control boxes RSA Hz, RSA Hz Pro and SD510.
The kit is made of :
- Cells including a LED to give information about the installation status. The LED is ON during an obstruction detection. It flashes when sending the highest level of intensity (can be due to rubber profile wear). Transmitter cable length is 10.5m.
- Bumpers
- 3 wire spiral cable with a maximum length of 7m
- Connection box with a terminal block to make the connection between cells and spiral cable
- Offset bracket to be installed at a maximum distance of 2 meters from the control box. This allows the coil cord to less stress during the opening of the door and not to disturb the movement
Related documents
- Fiche Technique Accessoires de Sécurité (FR)
- Product Data Sheet Safety accessories (EN)
- Installation guide CONNEXION KIT SE ACCESS - 5144703A - FR EN
- Installation Guide Antichutes - 5071775D (FR-EN)
- Feu de signalisation 5127860C (FR EN)
Features
| Features | Value |
| Protection Index | IP65 |
| Power supply | 24V |
| Applications | Industrial & commercial closure |
