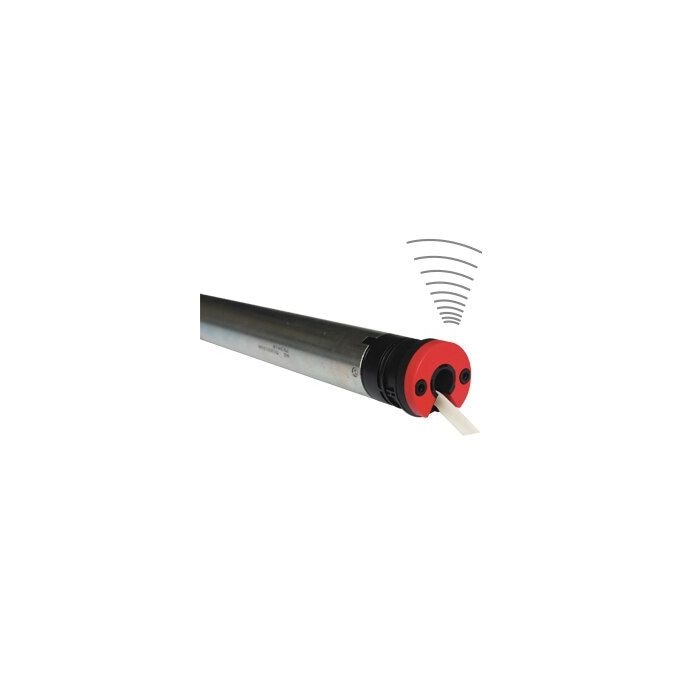

T3.5 HZ02 13/10 230/50 C3M WHITE/10
Reference : 2008664
Power cable of 3 meters (2x0.75 mm2 strands, white H05 VV-F)
Torque 13 Nm - Speed 10 r.p.m.
Delivered by 10
Radio electronic, Ø 40mm
- Motor with built-in SIMU-Hz radio receiver.
- Electronic end-limit system.
- Remote setting of up and down end-limit from a SIMU-Hz transmitter. (excepted sequential hz transmitter).
- Intermediate position function: it is possible to record a user’s favorite position.
- Class II motor: no earth connection required.
- Motor protection: if the crown does not turn, the motor stops itself.
Related documents
- -- Fiche produit T3,5 Hz.02 (FR)
- -- Product leaflet T3,5 Hz.02 (EN)
- Installation guide T3,5Hz.02_T5Hz.02_T6Hz.02 - 5010945M
- -- Product leaflet Motors for screen (EN)
- -- Fiche produit Moteurs pour stores droits (FR)
Characteristic
| Characteristic | Value |
| Radio Frequency | 433.42 MHz |
| Protection Index | IP 44 |
| Speed | 10 rpm |
| Torque | 13 Nm |
| Diameter | 40 mm |
| Power supply | 230V/50HZ |
| Applications | Rolling shutter |
