Produit

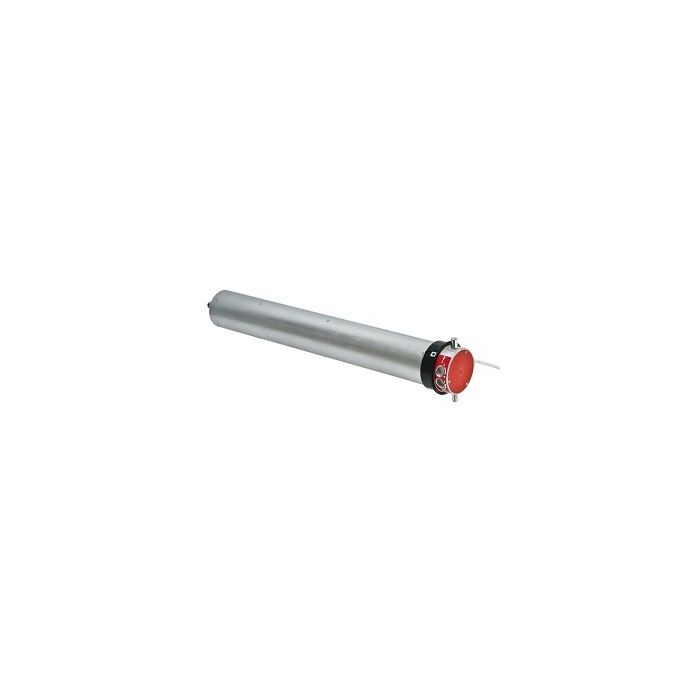

T8 300NM 230/50 BASE Ø94 FDCS
Reference : 2007989
Wired single-phase
-The widest range of torque, from 150 to 450Nm with single phase power supply
-Safety end-limit system a third switch cuts the power supply of the motor when going beyond the up or down limits, in accordance with or without.
The most discreet solution for grilles and metal curtains !
-Located inside the roller tube, the T8 considerably reduces the total diameter of the drive axis when the curtain is rolled up
-Range of torques up to 450 Nm, in single-phase current
-To facilitate your compliance with standard EN 12453, SIMU has incorporated a safety travel limit device in the T8 motors. A third electrical contact cuts the power to the motor if the top and bottom travel limits are exceeded
See the range
-The widest range of torque, from 150 to 450Nm with single phase power supply
-Safety end-limit system a third switch cuts the power supply of the motor when going beyond the up or down limits, in accordance with or without.
The most discreet solution for grilles and metal curtains !
-Located inside the roller tube, the T8 considerably reduces the total diameter of the drive axis when the curtain is rolled up
-Range of torques up to 450 Nm, in single-phase current
-To facilitate your compliance with standard EN 12453, SIMU has incorporated a safety travel limit device in the T8 motors. A third electrical contact cuts the power to the motor if the top and bottom travel limits are exceeded
Related documents
- B2B Brochure ICC Tubular motors / EN
- B2B Brochure Moteurs tubulaires ICC / FR
- Installation Guide T8 150-300Nm et T9 300Nm-5007558
Characteristic
Characteristic | Value |
Protection Index | IP 44 |
Speed | 8 rpm |
Torque | 300 Nm |
Diameter | 80 mm |
Power supply | 230V/50HZ |
Applications | Garage door, Industrial & commercial closure |
