Produit
See the range

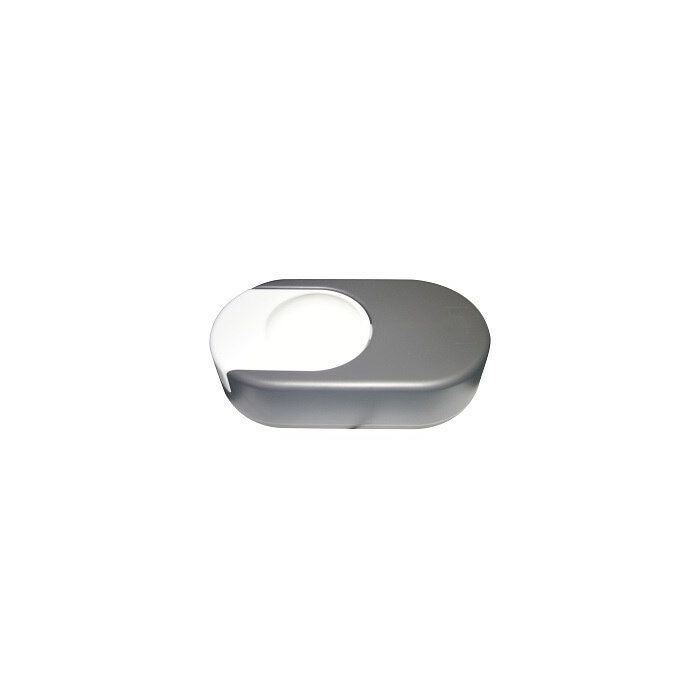

GM 1000
Reference : 2007951
CHOICE OF MOTOR:
GM1000 = Door surface from 10 to 15 m2
Easy to set up
The end of limit self-learning system simplifies setting up the GM motors. It automatically adjusts itself in a single cycle.
Always operational
An useful declutching system gives the opportunity to manually operate the door in case of power failure.
Guaranteed safety
With their integrated stop-onobstacle system, GM motors guarantee the protection of users, their possessions and the garage door. For even better protection, GM motors can also be connected to a sensor array.
SIMU-Hz compatibility
GM1000 uses the SIMU-Hz radio technology. In this way you can control the GM1000 motor with all the remote controls of the SIMU-Hz range.
Related documents
- Catalogue_Garage Doors 2018 (EN)
- GM1000 5125126
- Catalogue_Porte de Garage 2018 (FR)
- Installation guide GM1000 5100070D - FR GB DE NL
- Installation guide GM1000 5100070D - FR GB DE NL
Features
| Features | Value |
| Radio Frequency | 433.42 MHz |
| Speed | 18 rpm |
| Torque | 1000 Nm |
| Power supply | 230V/50HZ |
| Applications | Garage door |
