Produit

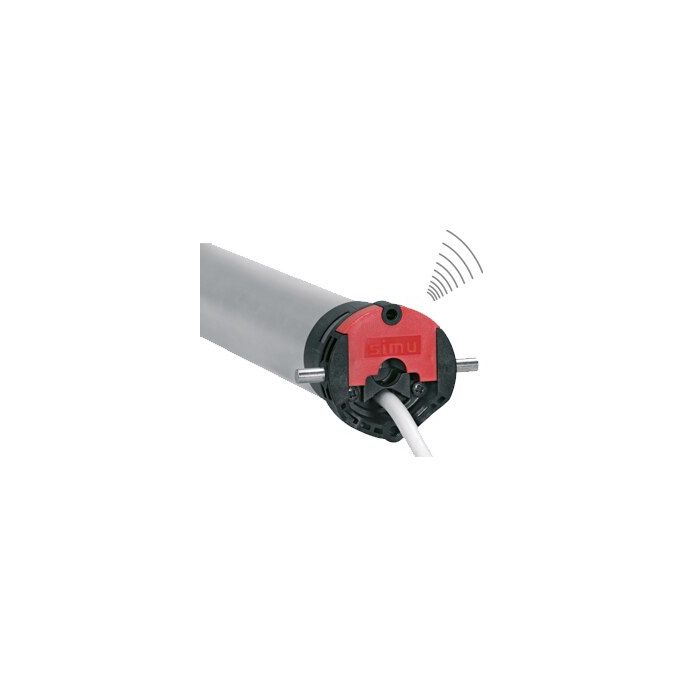

T5EBHz 08/17 230/50 C2,5M WH/1

Reference : 2009210

Torque 08 Nm - Speed 17 rpm
Power cable: 2.5 meters (3x0.75 mm. wires, white H05 VVF), plugglable.
Delivered by 1

MOTOR WITH BUILT-IN BIDIRECTIONAL RADIO SIMU-BHz: a real time follow-up of your installation directly on smartphone with Livein2. The motor gives its position on your smartphone.
ELECTRONIC END-LIMIT SYSTEM: 4 possible setting modes: automatic mode, down semi-automatic mode, up semi-automatic mode, manual mode.
STOP ON OBSTACLE FUNCTION: the motor stops during the closing in the case of an obstacle.
FROST DETECTION FUNCTION: the motor stops during the opening if the shutter curtain is stuck in the guide rails by frost or if the bottom lath is locked.
INTERMEDIATE POSITION FUNCTION: it is possible to record a user’s favorite position.
SIMPLE PROGRAMMING: SIMU-Hz/SIMU-BHz continuity: your installation and programming habits remain the same as those of SIMU-Hz technology.

See the range

Related documents

Characteristic

Characteristic Value
Radio Frequency 868.95 MHz
Speed 17 rpm
Torque 8 Nm
Diameter 50 mm
Power supply 230V/50HZ
Applications Rolling shutter
