Technical characteristics
| Commercial Range | acc - FOR SAFETY |
|---|---|
| Unwrapped height | 107 mm |
| Unwrapped width | 92 mm |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Approval | CMIM, EAC |
| Insulation class | Class III |
| Protection Index | IP 54 |
| Type | Accessories |
| Application | Garage door, Gate |
| Embedded Technologies | Wired |
Compatibility & Applications
Embedded Technologies
-
Wired
Application
-
Garage door
-
Gate
Description

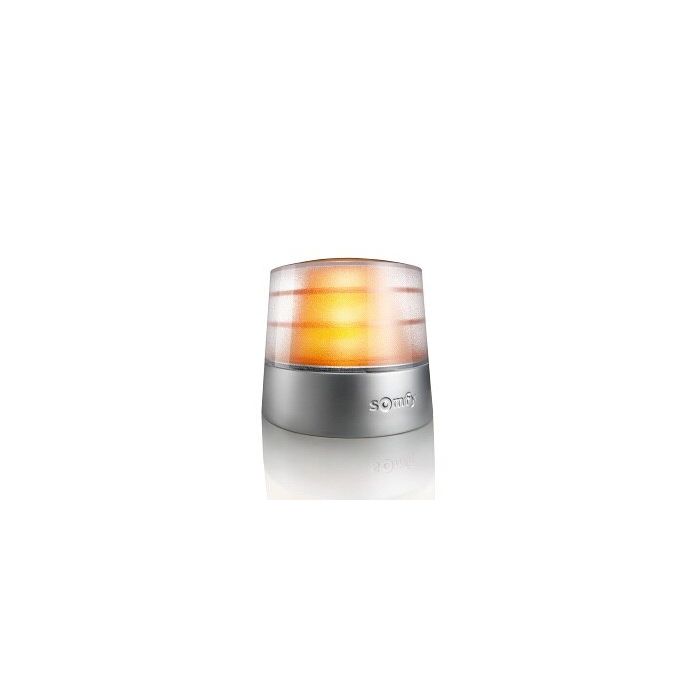

ORANGE LIGHT MASTERPRO 230V signals the opening and closing movement of the door.
Recommended for signalling door movement and necessary when exiting onto the public highway.
Power supply : 230V
Management of the flashing by the orange light
Electrical insulation class I
Dimensions (H x Ø) : 92 x 107mm
Working temperature : From -20°C to +60°C
Protection Index : IP54
Power : 25W
Compatibility : Control board SD100Hz and SD510
Recommended for signalling door movement and necessary when exiting onto the public highway.
Power supply : 230V
Management of the flashing by the orange light
Electrical insulation class I
Dimensions (H x Ø) : 92 x 107mm
Working temperature : From -20°C to +60°C
Protection Index : IP54
Power : 25W
Compatibility : Control board SD100Hz and SD510
