Technical characteristics
| Commercial Range | Remote transmitter BHz 1 channel |
|---|---|
| Unwrapped height | 15 mm |
| Unwrapped width | 40 mm |
| Number of channels | 1 |
| Radio Frequency | 868.950 MHz |
| Range in house | 20 m |
| Range in open field | 200 m |
| Approval | CE |
| Insulation class | Class III |
| Protection Index | IP 30 |
| Unwrapped length | 125 mm |
| Color / Finish | White |
| Range details | TRANSMIT BHZ MOBILE 1C |
| Type | Controls |
| Application | Rolling shutter |
| Embedded Technologies | BHz |
Compatibility & Applications
Embedded Technologies
-
BHz
Application
-
Rolling shutter
Description

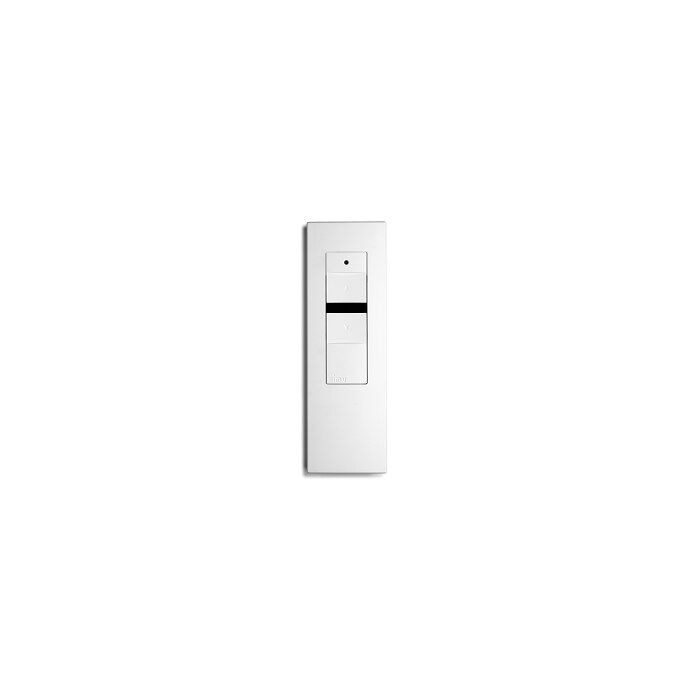

Range of transmitters for local control of the new SIMU-BHz radio motor range.
POWER SUPPLY: Mobile version: 3V type CR 2032
OPERATING TEMPERATURE: 0°C to +45°C
RADIO RANGE: Mobile version: 200 meters in open field and 20 meters through 2 reinforced concrete walls
COMPATIBILITY with BHz motors and receivers
RADIO FREQUENCY 868-870 MHz
PROTECTION INDEX IP30
PRODUCT CLASS III
SIZE Mobile version: 125x40x15mm
