Technical characteristics
| Commercial Range | DMI6 Hz.01 |
|---|---|
| Torque | 120 Nm |
| Unwrapped height | 92 mm |
| Unwrapped width | 92 mm |
| Radio Frequency | 433.420 MHz |
| Range in house | 15 m |
| Range in open field | 150 m |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 12 rpm |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 60 mm |
| Unwrapped length | 878 mm |
| Minimum internal diameter | 60 mm |
| Type | Motors |
| Application | Awning |
| Embedded Technologies | Hz |
| Consumption in standby mode | 0.34 W |
Compatibility & Applications
-
Hz
-
Awning
Description

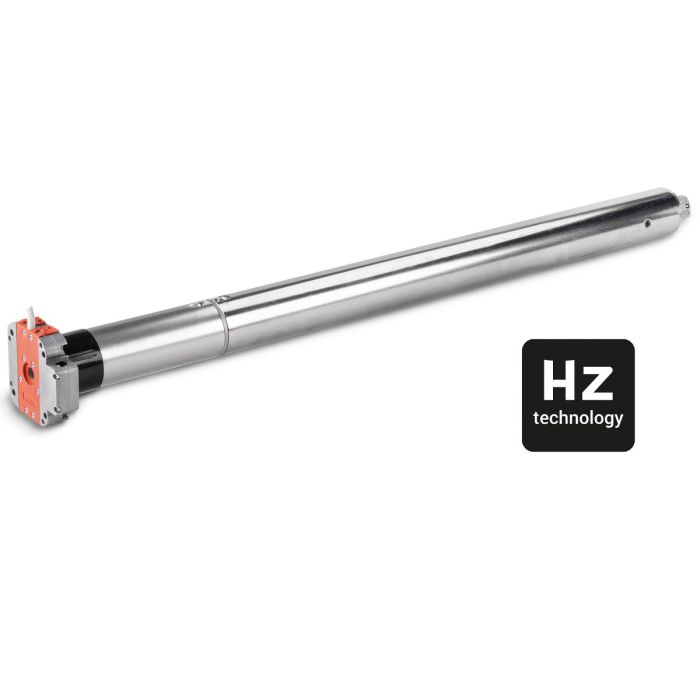

Radio motor with Built-in manual override - Delivered by 1
Torque 120Nm - 12 r.p.m.
Cable: 2.5 meters (3 x 0.75 mm2 wires, White H05 VV-F)
Radio, Ø60 mm
- Motor with built-in SIMU-Hz radio receiver
- Built-in manual override
- Progressive end-limit system
- Setting of the up and down end-limits on the motor head
- Compact motor head
A powerful motor always ready to go!
- With the integrated manual override the roller shutter can still be rolled up or deployed if there is a power failure
- A wide range of torques from 60 to 120 Nm
- Motor equipped with the SIMU-Hz wireless control system is recognized as one of the most reliable on the market
- The compact head can be easily mounted with multiple positioning options
