Technical characteristics
| Commercial Range | DMI5 Hz.01 |
|---|---|
| Torque | 50 Nm |
| Unwrapped height | 92 mm |
| Unwrapped width | 92 mm |
| Radio Frequency | 433.420 MHz |
| Range in house | 15 m |
| Range in open field | 150 m |
| Power supply | AC - RGE 1 - 230V/50HZ |
| Speed | 12 rpm |
| Approval | CE |
| Insulation class | Class I |
| Protection Index | IP 44 |
| Diameter | 50 mm |
| Unwrapped length | 797 mm |
| Minimum internal diameter | 47 mm |
| Type | Motors |
| Application | Awning |
| Embedded Technologies | Hz |
| Consumption in standby mode | 0 W |
Compatibility & Applications
-
Hz
-
Awning
Description
Radio motor with Built-in manual override - Delivered by 1
Torque 50 Nm - 12 r.p.m.
Cable: 2.5 meters (3 x 0.75 mm2 wires, White H05 VVF)

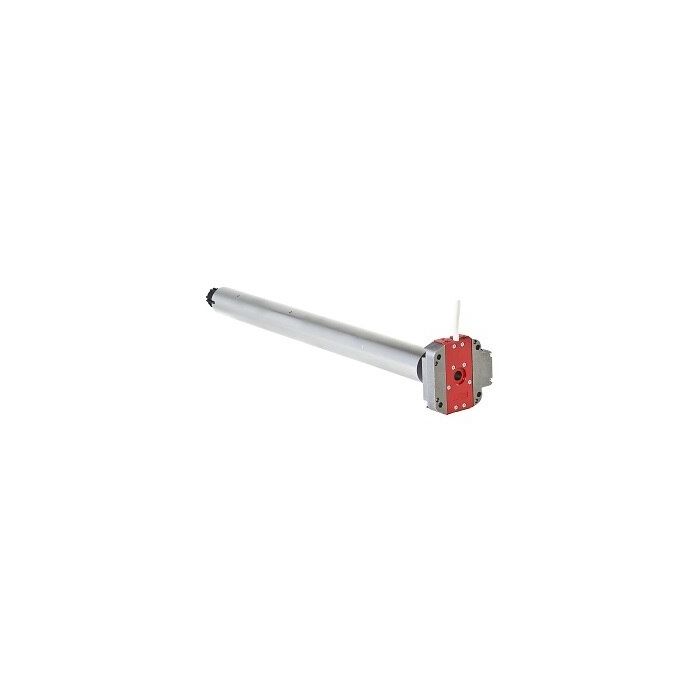

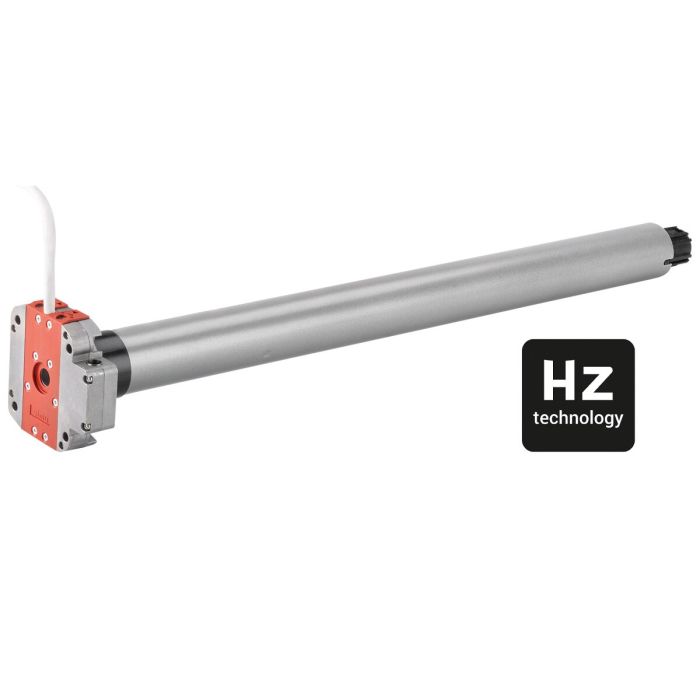

Radio motor, Ø 50 mm
- Motor with built-in SIMU-Hz radio receiver
- Progressive end-limit system
- Setting of the up and down end-limits on the motor head... on either sides of the head
- Compact motor head... only 24 mm thickness
With wireless or manual control, it is always ready to go !
- With the integrated manual override the roller shutter can still be rolled up or deployed if there is a power failure
- A wide range of torques from 10 to 50 Nm
- Motor equipped with the SIMU Hz wireless control system is recognized as one of the most reliable on the market
- The compact head can be easily mounted with multiple positioning options
