Technical characteristics
| Commercial Range | SA Hz radio keypad |
|---|---|
| Unwrapped height | 30 mm |
| Unwrapped width | 70 mm |
| Number of channels | 2 |
| Radio Frequency | 433.420 MHz |
| Range in open field | 30 m |
| Approval | CE, CMIM, EAC, RCM, UKCA |
| Insulation class | Class III |
| Protection Index | IP 55 |
| Unwrapped length | 120 mm |
| Color / Finish | Black |
| Type | Controls |
| Application | Garage door, Industrial & commercial closure |
| Embedded Technologies | Hz |
Compatibility & Applications
-
Hz
-
Garage door
-
Industrial & commercial closure
Description

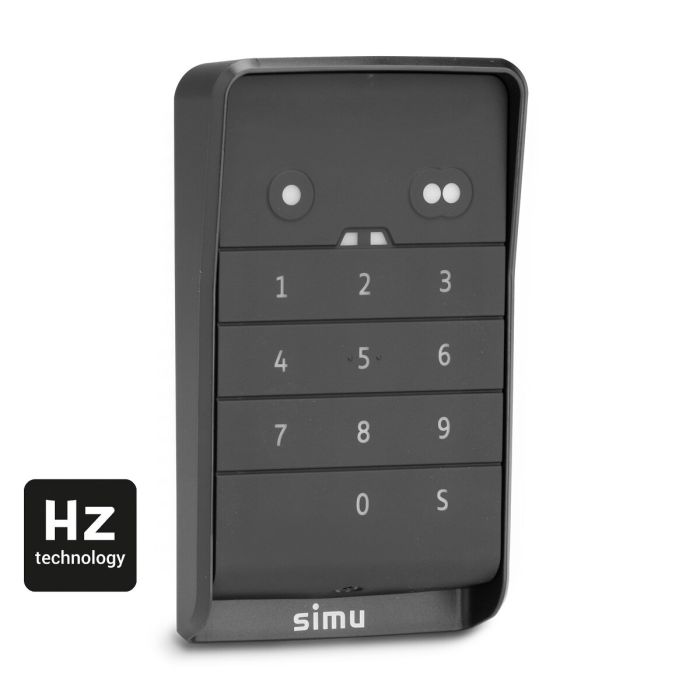

Control your garage door with confidence!!
A DISCREET, MODERN DESIGN
- An anthracite look and compact size to blend seamlessly into its environment.
- Rain hood to protect against bad weather.
- Keypad backlighting for use day or night.
- Configurable keypad sounds.
SIMPLE, SECURE USAGE
- Two channels to control two devices, e.g. a garage door and a gate.
- One main code to open all the channels and change the settings, and a secondary code to restrict control to a single channel (for an external contractor for example).
- Protection against unauthorised entry thanks to automatic locking of the keypad after several unsuccessful attempts.
EASY TO INSTALL AND PROGRAM
- Two pre-mounted elements to assemble which are attached using a captive screw.
- Easy to configure or change the code: just three steps using the set and reset buttons.
COMPATIBILITY
- SD100Hz control box and the GM range of garage door motors.
- Control of a gate fitted with another radio technology when combined with the Simu standard receiver.
