Product sheet
T5ZSPHZ 06/17 230 C3MRRF /10

T5ZSPHZ 06/17 230 C3MRRF /10

Reference : 2009160

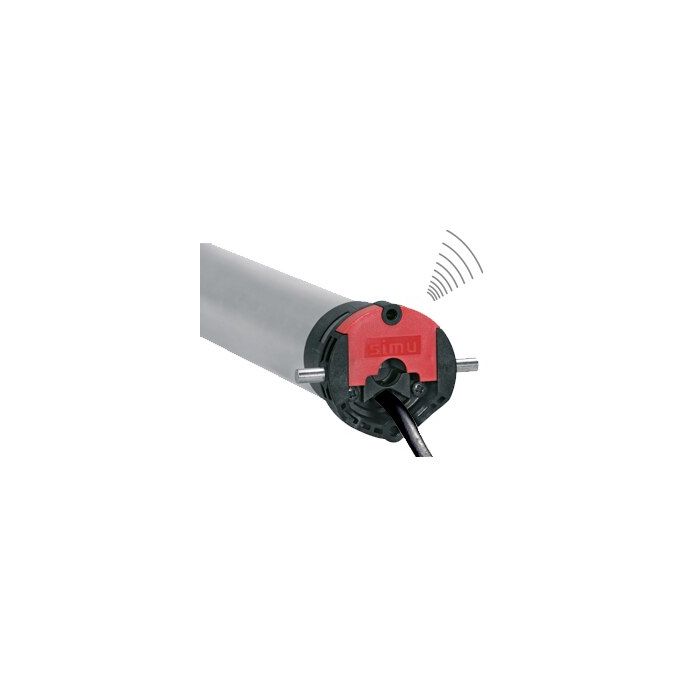

Radio electronic, ø 50 mm

- Detection of obstacle to descent with an automatic rise of the fabric in case of obstacle.

- 3 setting modes: automatic, semi-automatic and manual

- Motor with built-in Simu-Hz radio receiver

- Compatible with low position automatic locks to tension the fabric in manual or semi-auto limit switch

- Intermediate position function it is possible to record a user’s favorite position.


An universal screen motor for vertical screens

Advanced features to match Zip screens specificities.

Compatible with screens with auto locks and also compatible with standard screen but without obstacle detection.

​Simple behavior in case of obstacle with a one stop and liberation in case of obstacle detection.



See the range

Related documents

Document name Link
Fiche technique Technical datasheet T5 ZSP-T5 ZSP Hz -FR-EN Download
Installation Guide T5 ZSP Hz - 5137328A - (FR EN DE NL PL ES) Download
Fiche Technique T5 ZSP T5 ZSPHZ FR Download

Technical information

Application(s) Exterior blind
Nominal Torque 6 Nm
Nominal Speed 17 rpm
Nominal Voltage / Frequency 230V - 50 Hz
